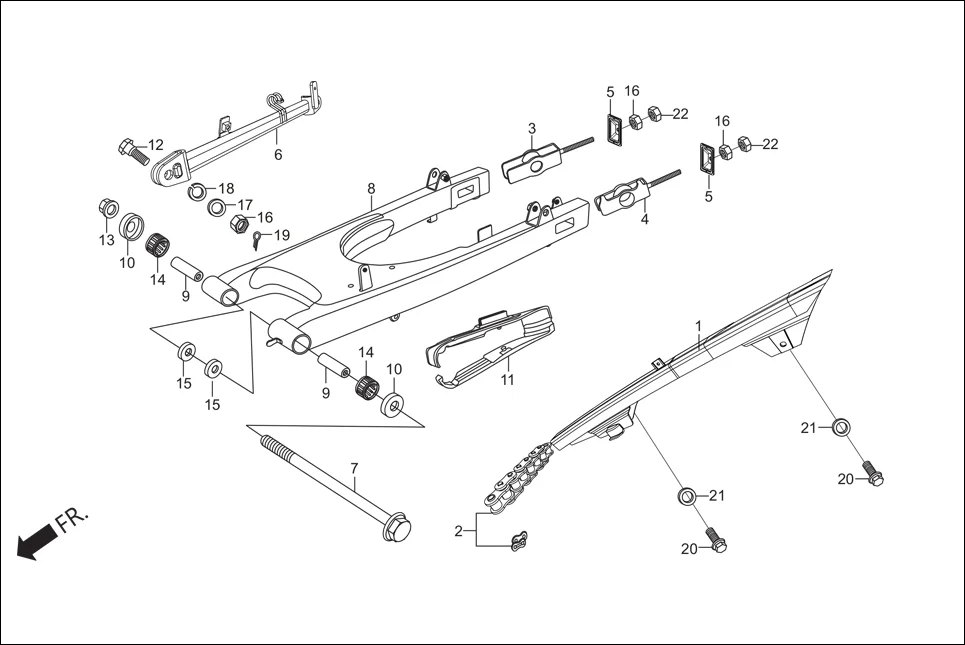

F-19-DRUM - SWINGARM / CHAIN CASE
Hero Xtreme (Apr, 2014) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-AAB-000 | UPPER CHAIN CASE | 1 | |
| 2 | 40530-AAB-00099 | CHAIN DRIVE | 1 | |
| 3 | 40543-KRY-900 | ADJUSTER, R CHAIN | 1 | |
| 4 | 40544-KRY-900 | ADJUSTER, L CHAIN | 1 | |
| 5 | 40546-KVE-900 | CAP, SWINGING END (SSM) | 2 | |
| 6 | 43431-AAB-000 | ARM RR BRAKE STPR | 1 | |
| 7 | 52101-KTN-700 | BOLT, SWINGARM PIVOT | 1 | |
| 8 | 52110-AAB-000 | SWINGARM COMP RR | 1 | |
| 9 | 52143-KVE-900 | COLLAR, PIVOT DIST L | 2 | |
| 10 | 52144-GC4-005 | DUST, SEAL CAP RR. SWINGRAM | 2 | |
| 11 | 52170-AAB-000 | SLIDER CHAIN | 1 | |
| 12 | 90133-331-770 | BOLT, HEX., 8MM | 1 | |
| 13 | 90305-GE8-003R | NUT U 14 MMSTON.STD. | 1 | |
| 14 | 91071-KVN-900 | BRG, NEEDLE 20X26X20 | 2 | |
| 15 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 2 | |
| 16 | 94001-08000-0S | NUT, HEX., 8 MM | 2 | |
| 17 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 18 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 19 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 20 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 21 | 90522-AAB-000 | WASHER, CHAIN CASE SETTING | 3 | |
| 22 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
