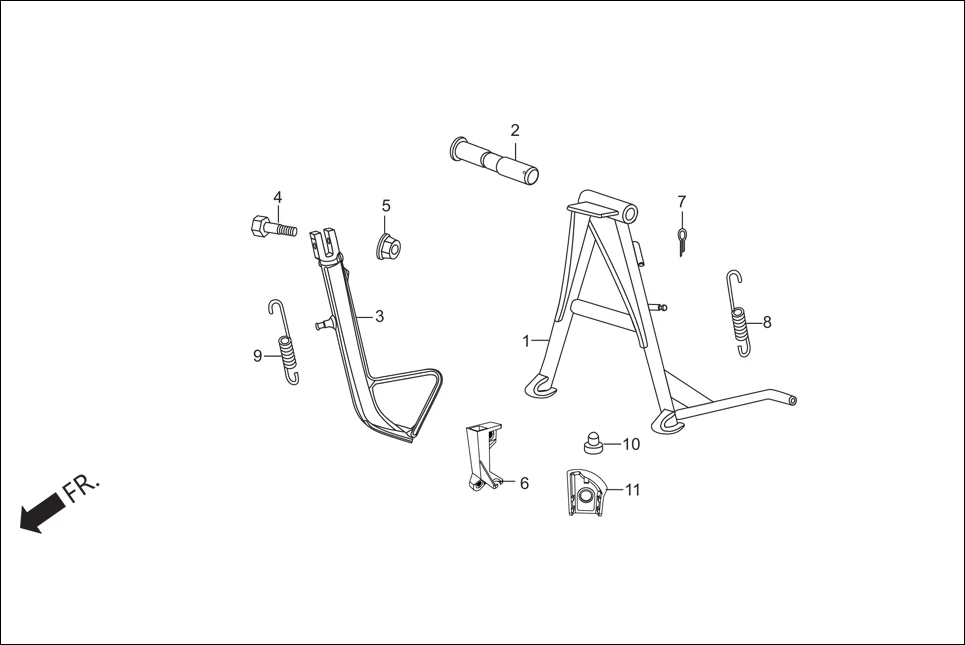

F-18A - MAIN STAND / SIDE STAND
Hero Xtreme (Apr, 2014) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50500-AAB-000 | STAND COMP MAIN | 1 | |
| 2 | 50526-KCT-690 | SHAFT, MAIN STAND PIVOT | 1 | |
| 3 | 50530-KVE-900 | BAR COMP., SIDE STAND | 1 | |
| 4 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 5 | 90304-KFN-850 | NUT U 10 MM | 1 | |
| 6 | 35140-AAB-000 | SIDE STAND SWITCH | 1 | |
| 7 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 8 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 9 | 95014-72102 | SPRING, SIDE STAND | 1 | |
| 10 | 95011-62000 | RUBBER B, STAND STOPPER | 1 | |
| 11 | 35130-AAB-000 | MAGNET HOLDER ASSY. | 1 | |
