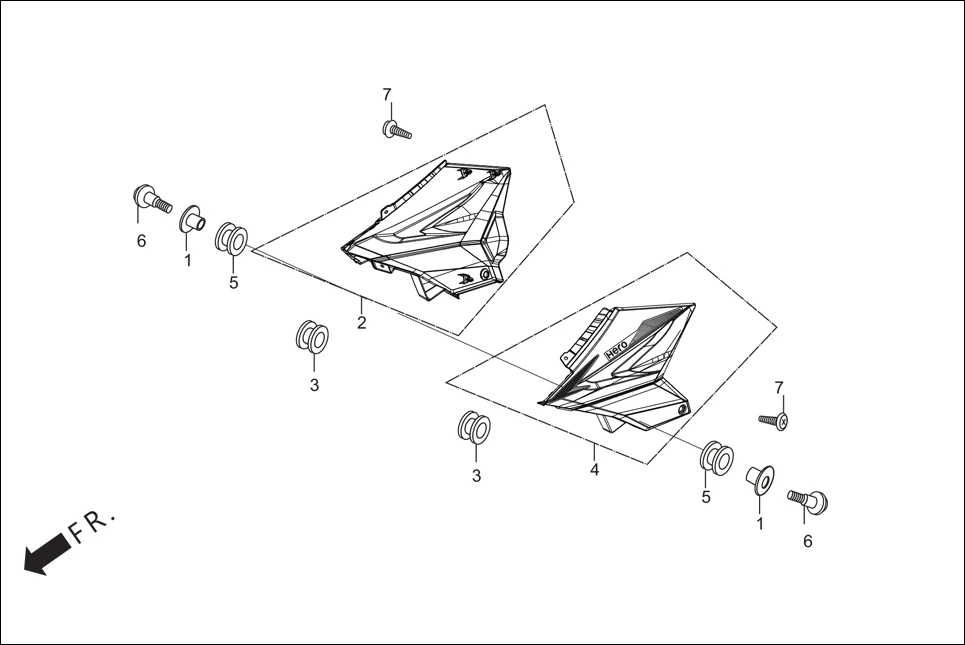

F-14-SIDE COVER
HeroXtreme (Apr, 2014) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 2 | |
| 2 | 83500-AAB-000R | SET , R SIDE COVER(BLK,NH-1) | 1 | |
| 2 | 83500-AAB-000S | SET , R SIDE COVER(SRD,R-321) | 1 | |
| 2 | 83500-AAB-000T | SET , R SIDE COVER(DSM,NH-A30M) | 1 | |
| 2 | 83500-AAB-000U | SET , R SIDE COVER(BOM,YR-254M) | 1 | |
| 2 | 83500-AAB-000V | SET , R SIDE COVER(FBM,PB-380M) | 1 | |
| 3 | 83551-376-000 | GROMMET, SIDE COVER | 2 | |
| 4 | 83600-AAB-000R | SET , L SIDE COVER(BLK,NH-1) | 1 | |
| 4 | 83600-AAB-000S | SET , L SIDE COVER(SRD,R-321) | 1 | |
| 4 | 83600-AAB-000T | SET , L SIDE COVER(DSM,NH-A30M) | 1 | |
| 4 | 83600-AAB-000U | SET , L SIDE COVER(BOM,YR-254M) | 1 | |
| 4 | 83600-AAB-000V | SET , L SIDE COVER(FBM,PB-380M) | 1 | |
| 5 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 6 | 90105-KVE-860 | BOLT,SPECIAL 6X22 | 2 | |
| 7 | 91509-KWA-830 | SCREW, PAN 5X18.5 | 2 |
