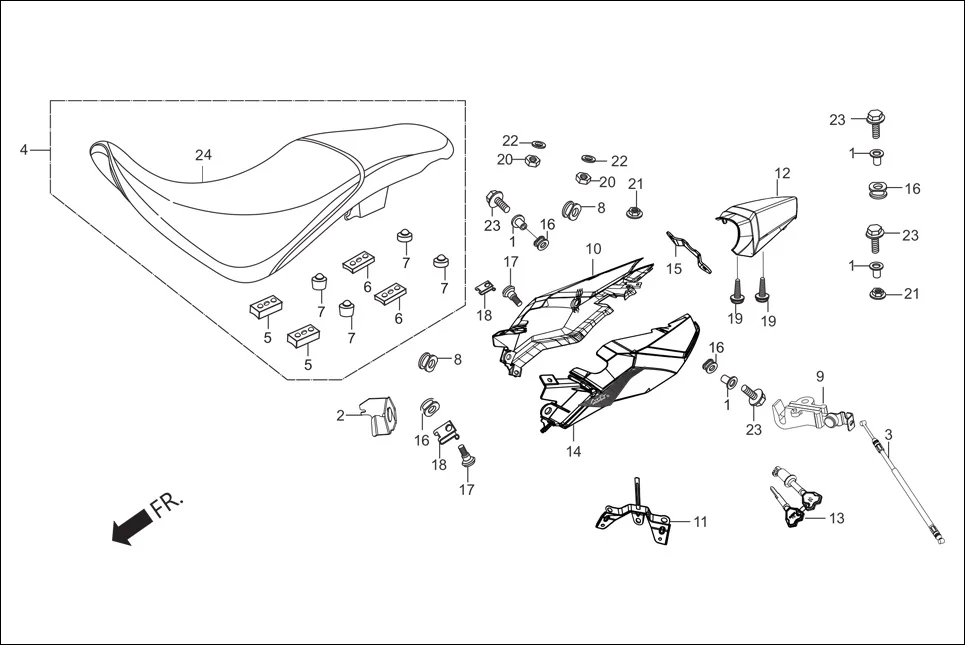

F-12-SEAT ASSY. COWL
HeroXtreme (Apr, 2014) · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 4 | |
| 2 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 3 | 77156-AAB-000 | CABLE SEAT LOCK | 1 | |
| 4 | 77200-AAB-000 | SEAT COMP DOUBLE | 1 | |
| 5 | 77204-KCC-900 | RUBBER, `A SEAT SETTING | 2 | |
| 6 | 77205-KVE-900 | RUBBER, B SEAT SETTING | 2 | |
| 7 | 77206-KFN-850 | RUBBER SEAT CUSHION | 4 | |
| 8 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 2 | |
| 9 | 77221-KVE-860 | HOOK SEAT CATCH | 2 | |
| 10 | 77231-AAB-000R | SET , R COWL RR UNDER(BLK,NH-1) | 1 | |
| 10 | 77231-AAB-000S | SET , R COWL RR UNDER(SRD,R-321) | 1 | |
| 10 | 77231-AAB-000T | SET , R COWL RR UNDER(DSM,NH-A30M) | 1 | |
| 10 | 77231-AAB-000U | SET , R COWL RR UNDER(BOM,YR-254M) | 1 | |
| 10 | 77231-AAB-000V | SET , R COWL RR UNDER(FBM,PB-380M) | 1 | |
| 11 | 77235-AAB-000 | STAY TAIL LIGHT | 1 | |
| 12 | 77238-AAB-000 | SET , CENTER RR COWL | 1 | |
| 13 | 77239-AAB-001 | KEY SEAT LOCK | 1 | |
| 14 | 77241-AAB-000R | SET , L COWL RR UNDER(BLK,NH-1) | 1 | |
| 14 | 77241-AAB-000S | SET , L COWL RR UNDER(SRD,R-321) | 1 | |
| 14 | 77241-AAB-000T | SET , L COWL RR UNDER(DSM,NH-A30M) | 1 | |
| 14 | 77241-AAB-000U | SET , L COWL RR UNDER(BOM,YR-254M) | 1 | |
| 14 | 77241-AAB-000V | SET , L COWL RR UNDER(FBM,PB-380M) | 1 | |
| 15 | 77244-AAB-000 | STAY SEAT LOCK CABLE | 1 | |
| 16 | 83545-KCJ-690 | RUBBER, SIDE COVER | 4 | |
| 17 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 18 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 19 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 20 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 21 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 22 | 94103-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 23 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 24 | 7720A-AAB-000 | COVER SEAT ASSY DOUBLE | 1 |
