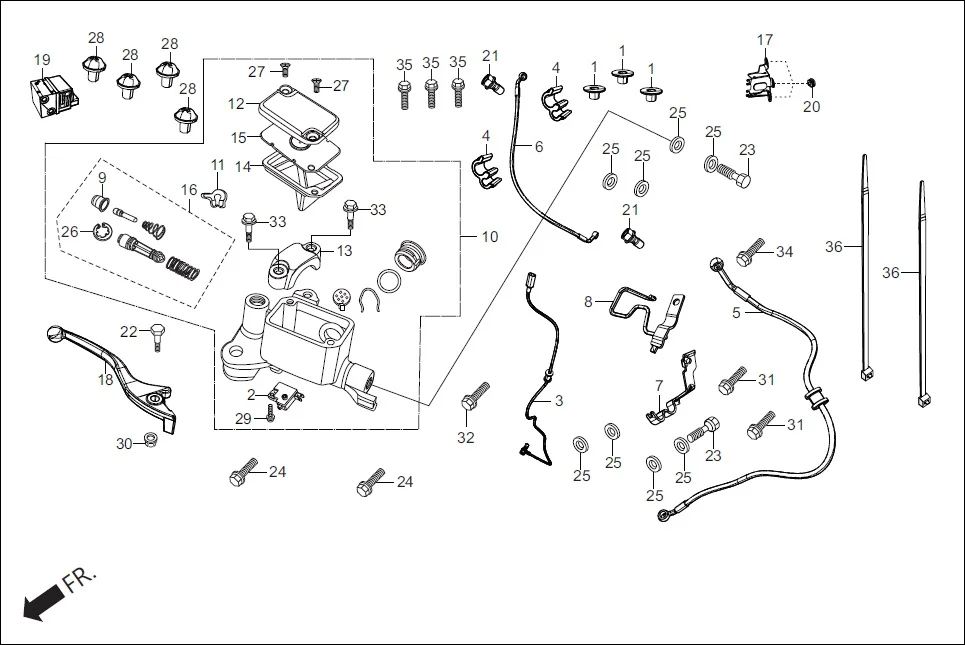

F-4A-FRONT BRAKE (MASTER CYLINDER)
HeroXtreme 200S (May, 2019) · 36 parts
Parts in This Assembly (36)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19052-AAB-A00 | COLLAR ABS UNIT MOUNTING | 3 | |
| 2 | 35340-MA5-670L | SW. ASSY. FR. STOP | 1 | |
| 3 | 38520-AAB-D00 | SENSOR FRONT WHEEL SPEED | 1 | |
| 4 | 43301-AAB-A00 | CLIP BRAKE LINE | 2 | |
| 5 | 45126-AAB-D00 | BRK. HOSE ASSY. HECU TO CALIPER FR. | 1 | |
| 6 | 45128-AAB-D00 | BRK. HOSE ASSY. FR. M/C TO HECU | 1 | |
| 7 | 45155-AAB-D00 | CLAMPER A FR. BRAKE | 1 | |
| 8 | 45156-AAB-D00 | CLAMPER B, FR BRAKE | 1 | |
| 9 | 45504-410-003L | BOOT COMP. | 1 | |
| 10 | 45510-KRY-972 | M/C SUB ASSY., FRONT BRAKE | 1 | |
| 11 | 45512-MA6-006 | PROTECTOR | 1 | |
| 12 | 45513-HA2-006L | CAP M/C | 1 | |
| 13 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 14 | 45520-GE2-006 | DIAPHRAGM | 1 | |
| 15 | 45521-K21-901 | PLATE, DIAPHRAGM | 1 | |
| 16 | 45530-471-831L | CYLINDER SET MASTER | 1 | |
| 17 | 50207-AAB-A00 | MT UPPER BRKT ABS CONTROL UNIT | 1 | |
| 18 | 53175-KFN-850L | LEVER, RIGHT STRG. HANDLE | 1 | |
| 19 | 57111-AAB-A00 | HECU MINI MAB | 1 | |
| 20 | 83545-AAB-A00 | RUBBER ABS UNIT MOUNTING | 3 | |
| 21 | 90042-AAB-A00 | BANJO BOLT M10X1 | 2 | |
| 22 | 90114-166-000L | BOLT HANDLE LEVER | 1 | |
| 23 | 90145-MS9-610 | OIL BOLT, 10 X 22 | 2 | |
| 24 | 90155-KY4-900 | BOLT, FLANGE, 8 X 25 | 2 | |
| 25 | 90545-300-000 | WASHER ,OIL BOLT | 8 | |
| 26 | 90651-MA5-671L | CIRCLIP | 1 | |
| 27 | 93600-04012-1GL | SCREW FLAT 4X12 | 2 | |
| 28 | 93891-05008-00 | SCREW WASH 5X8 | 4 | |
| 29 | 93893-04012-17L | SCREW WASHER 4X12 | 1 | |
| 30 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 31 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 32 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
| 33 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 | |
| 34 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 35 | 95701-06018-00 | BOLT FLANGE 6X18 | 3 | |
| 36 | 90652-AAW-300 | CABLE TIE | 2 |
