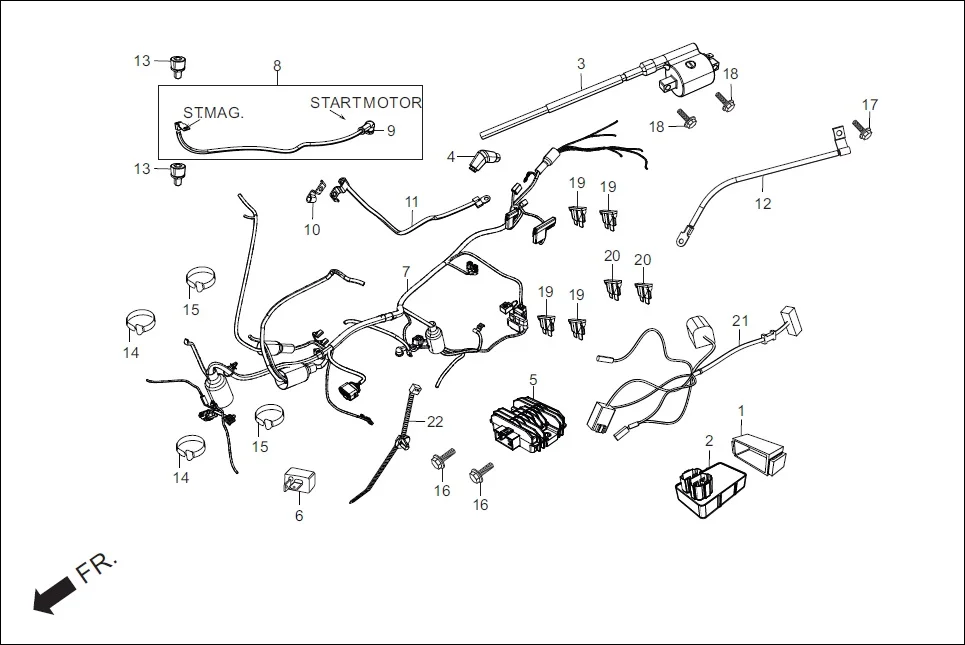

F-24-ELECTRICALS (WIRE HARNESS/START CABLES)
HeroXtreme 200S (May, 2019) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-AAB-A01 | CUSHION CDI UNIT | 1 | |
| 2 | 30410-AAB-A01 | UNIT COMP DIGITAL DC CDI | 1 | |
| 3 | 30500-ABW-001 | COIL ASSY IGN | 1 | |
| 4 | 30700-ACK-00099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31600-ABW-001 | REG RECT COMP | 1 | |
| 6 | 31700-124-000 | RECTIFIER ASSY., SILICON | 1 | |
| 7 | 32100-AAB-D00 | HARNESS WIRE | 1 | |
| 8 | 32410-AAB-A00 | CABLE START MOTOR | 1 | |
| 9 | 32411-253-000 | COVER, STARTING MOTOR | 1 | |
| 10 | 32413-KRY-970 | TERMINAL, BAT CABLE | 1 | |
| 11 | 32601-AAB-A00 | CABLE BAT EARTH | 1 | |
| 12 | 32602-AAB-A00 | CABLE ENG EARTH | 1 | |
| 13 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 14 | 91540-AAN-410 | CLIP, BAND HARN | 2 | |
| 15 | 91551-AAB-100 | BAND, CLAMP | 2 | |
| 16 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 17 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 1 | |
| 18 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 19 | 98200-31000 | BLADE, FUSE 10A | 4 | |
| 20 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
| 21 | 32102-AAB-D00 | SUB CORD HEAD LIGHT | 1 | |
| 22 | 90662-KPL-901 | HARNESS, BAND | 1 |
