F-17-PEDAL

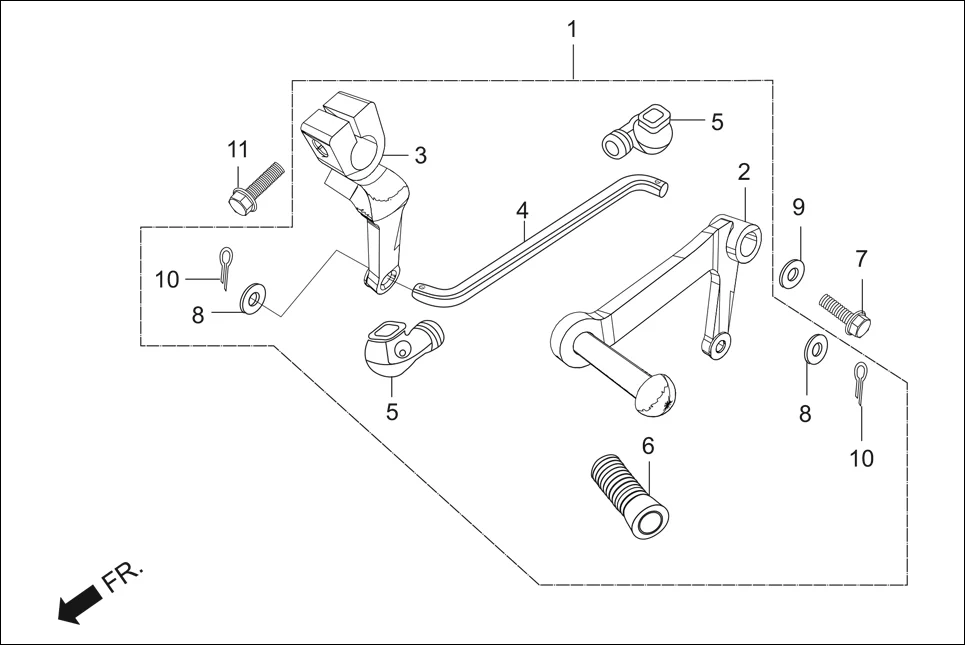

HeroXtreme 200S (May, 2019) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24700-AAB-D00 | PEDAL ASSY. CHANGE | 1 | |
| 2 | 24701-AAB-D00 | PEDAL GEAR CHANGE | 1 | |
| 3 | 24711-AAB-D00 | ARM GEAR CHANGE | 1 | |
| 4 | 24720-AAB-D00 | TIE ROD | 1 | |
| 5 | 24721-GS3-000 | COVER,CHANGE PEDAL | 2 | |
| 6 | 24781-KR3-770 | RUBBER, CHANGE PEDAL | 1 | |
| 7 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 1 | |
| 8 | 90502-155-000 | WASHER,PLAIN,7MM | 2 | |
| 9 | 94103-06000 | WASHER PLAIN,6MM | 1 | |
| 10 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 11 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 |
