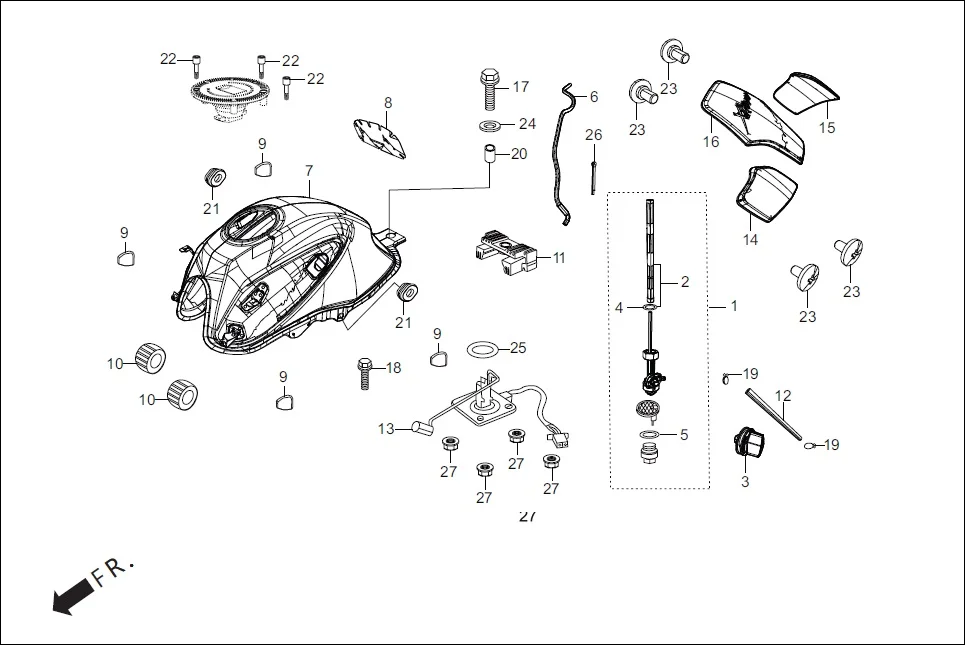

F-11-FUEL TANK
HeroXtreme 200S (May, 2019) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16950-AAB-A01 | COCK ASSY FUEL | 1 | |
| 2 | 16952-AAB-A01 | SET FUEL STRAINER SCREEN | 1 | |
| 3 | 16955-AAB-A00 | LEVER FUEL COCK | 1 | |
| 4 | 16956-AAB-A00 | O RING 33.9X5 | 1 | |
| 5 | 16958-397-770 | O-RING | 1 | |
| 6 | 17199-KTR-900 | TUBE, DRAIN | 1 | |
| 7 | 17510-AAB-D00R | TANK COMP FUEL (PANTHER BLACK ME.) | 1 | |
| 7 | 17510-AAB-D00T | TANK COMP FUEL (MAPLE BROWN ME.) | 1 | |
| 7 | 17510-AAB-D00U | TANK COMP FUEL (SPORTS RED) | 1 | |
| 8 | 17506-AAB-A00 | TANK FILM PROTECTOR | 1 | |
| 9 | 17529-KVN-900 | RUBBER SHROUD MOUNT | 4 | |
| 10 | 17611-KRY-970 | CUSHION , FRONT FUEL TANK | 2 | |
| 11 | 17613-MV4-000 | CUSHION, RR. FUEL TANK | 1 | |
| 12 | 17681-AAB-A00 | TUBE FUEL | 1 | |
| 13 | 37800-KVN-901 | UNIT, ASSY. FUEL | 1 | |
| 14 | 17549-AAB-A00 | PAD FUEL TANK L | 1 | |
| 15 | 17548-AAB-A00 | PAD FUEL TANK R | 1 | |
| 16 | 17547-AAB-A00 | PAD FUEL TANK MIDDLE | 1 | |
| 17 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 1 | |
| 18 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 19 | 95002-50000 | CLIP, C9 TUBE | 2 | |
| 20 | 80101-KVN-900 | COLLAR, 8 X 12 | 1 | |
| 21 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 22 | 90074-KVE-900 | BOLT SOCKET 4 X 21 | 3 | |
| 23 | 90108-KVN-900 | BOLT, COWL SET | 4 | |
| 24 | 90534-MV4-000 | WASHER ,8.5X28 | 1 | |
| 25 | 91305-443-740 | O RING, 39.5 X 5 | 1 | |
| 26 | 94201-25250 | PIN, SPLIT, 2.5X25 | 1 | |
| 27 | 94050-06000 | NUT, FLANGE, 6 MM | 4 |
