HERO OEM Part

ACRFA7F000000G

UNIT COMP ECU

Qty Required: 1 Ref #21 in Assembly

Part of Assembly

F-24
ELECTRICALS(WIRE HARNESS/START CABLES)
28 parts in this assembly

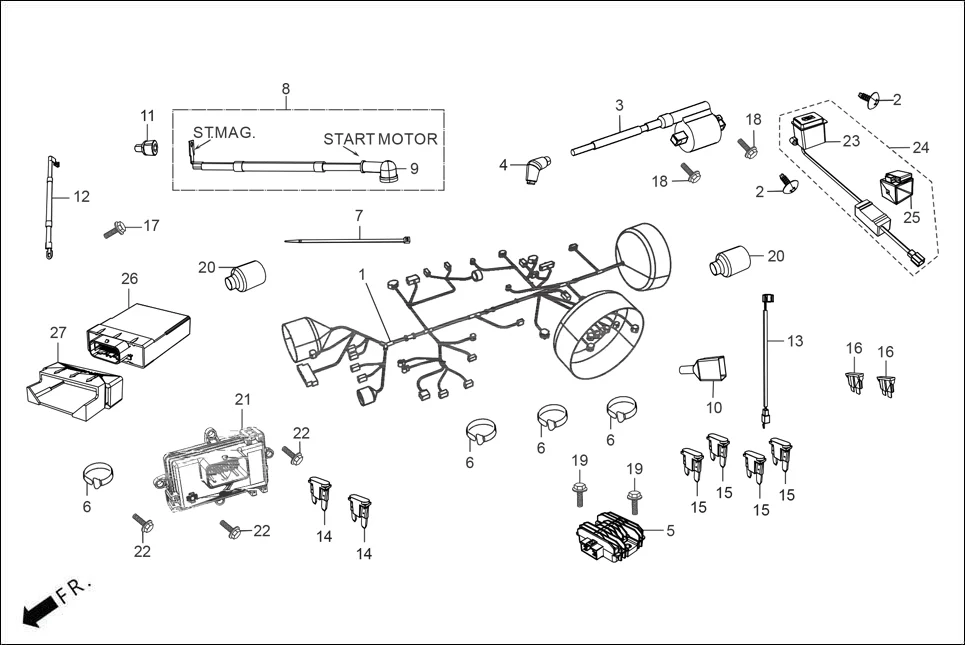

Assembly Diagram

F-24 ELECTRICALS(WIRE HARNESS/START CABLES) diagram showing ACRFA7F000000G
Ref #21

Supported Vehicles1

HHERO XTREME 160R(JUNE,2025)
HERO XTREME 160R(JUNE,2025)
Current

Related Parts

32100-ACR-510
HARNESS WIRE
93903-34410
SCREW, TAPPING, 4 X 16.
30510-AAF-401
COIL COMP IGNITION.
30510-AAC-801
COIL COMP IGNITION
30700-AAE-30099
CAP ASSY NOISE SUPPRESSOR
31600-ABZ-001
REG RECT COMP
View all 28 parts in this assembly
