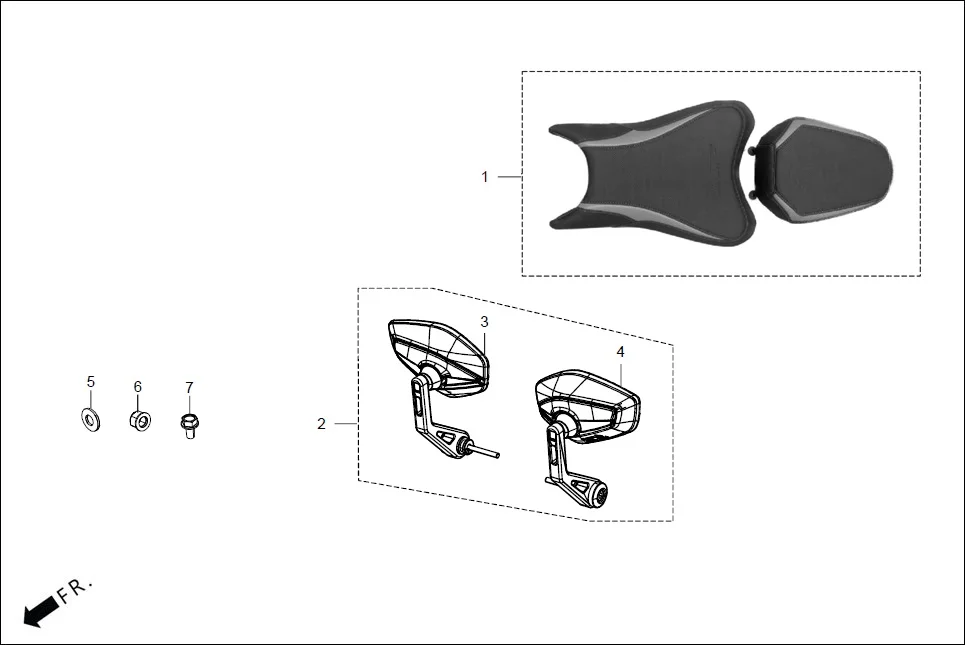

F-29B-(OPTIONAL)
HeroXTREME 125 XTEC2(Oct.,2025) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 99630-ACL-000 | COVER ASSY SEAT | 1 | |
| 3 | ADJSB0M001000G | MIRROR BAR END RH ASSY | 1 | |
| 4 | ADJSB0M002000G | MIRROR BAR END LH ASSY | 1 | |
| 5 | 94101-08700 | WASHER, PLAIN, 8MM | 1 | |
| 6 | 94050-08070 | NUT, FLANGE, 8MM | 1 | |
| 7 | 95701-08016-07 | BOLT FLANGE, 8 X 16 | 1 |
