F-22A-REAR WINKER

HeroXTREME 125R OBD II(Apr., 2025) · 5 parts

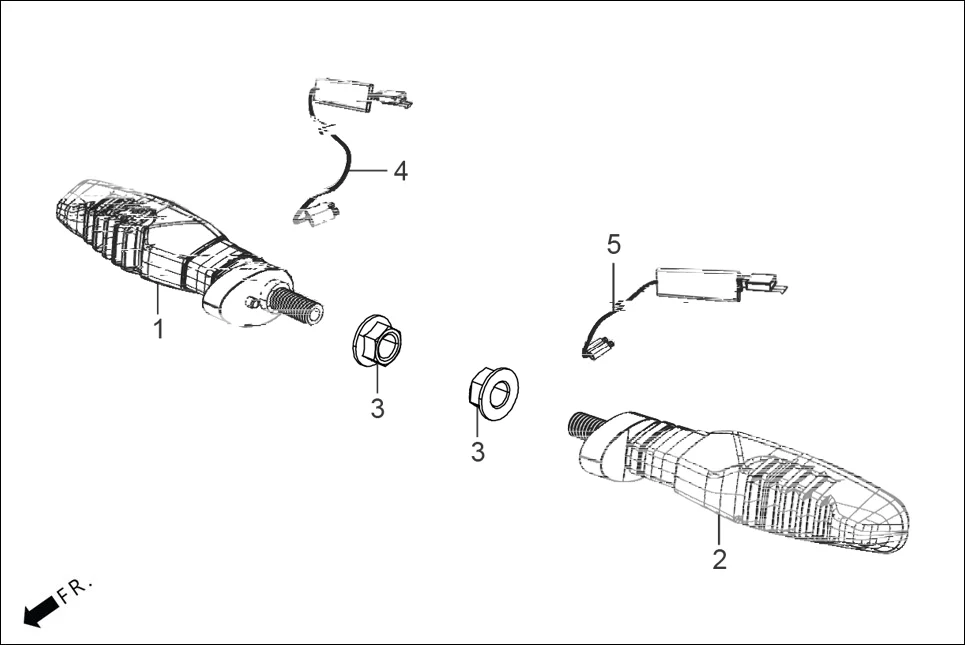

F-22A REAR WINKER assembly diagram for Hero XTREME 125R OBD II(Apr., 2025)

Parts in This Assembly (5)

Ref #Part NumberDescriptionQty
133600-ACL-001WINKER ASSY R RR1
233650-ACL-001WINKER ASSY L RR1
394050-08000NUT, FLANGE, 8MM2
432270-ABW-J01UNIT ASSEMBLY WINKER DRIVER REAR RIGHT1
532275-ABW-J01UNIT ASSEMBLY WINKER DRIVER REAR LEFT1
