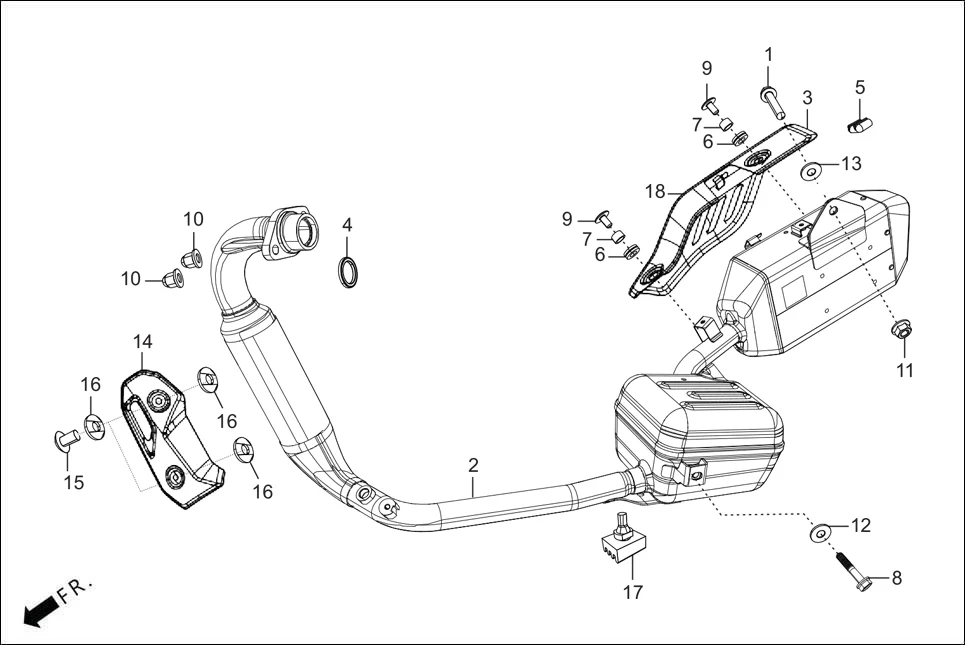

F-16-MUFFLER
HeroXTREME 125R OBD II(Apr., 2025) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 90019-ABZ-000 | BOLT FLANGE 8X41.5 | 1 | |
| 2 | 18350-ADJ-D00 | MUFFLER COMP EXHAUST | 1 | |
| 3 | 18312-ACL-000 | COVER MUFFLER ASSY | 1 | |
| 4 | 18291-AAT-000 | GASKET EX PIPE | 1 | |
| 5 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 6 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 7 | 33619-459-840A | COLLAR,WINKER STAY | 2 | |
| 8 | 95801-10055-00 | BOLT, FLANGE, 10X55 | 1 | |
| 9 | 90107-ABZ-000 | SCREW MUFF. PROTECTOR | 2 | |
| 10 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 11 | 94050-10000 | NUT, FLANGE, 10MM | 1 | |
| 12 | 94103-08700 | WASHER PLAIN 8MM | 1 | |
| 13 | 94103-10000 | WASHER, PLAIN, 10MM | 1 | |
| 14 | 18331-ACL-000 | COVER CAT PROTECTOR | 1 | |
| 15 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 2 | |
| 16 | 18292-KTP-900 | PACKING, PROTECTOR | 4 | |
| 17 | 50505-KTN-700 | RUBBER, A STAND STOPPER | 1 | |
| 18 | 1831A-ACL-000 | COVER MUFFLER SUB ASSY | 1 |
