HERO OEM Part

83502-RAA-000

GROMMET SIDE COVER

Qty Required: 1 Ref #15 in Assembly

Part of Assembly

F-25
FRAME BODY
30 parts in this assembly

Assembly Diagram

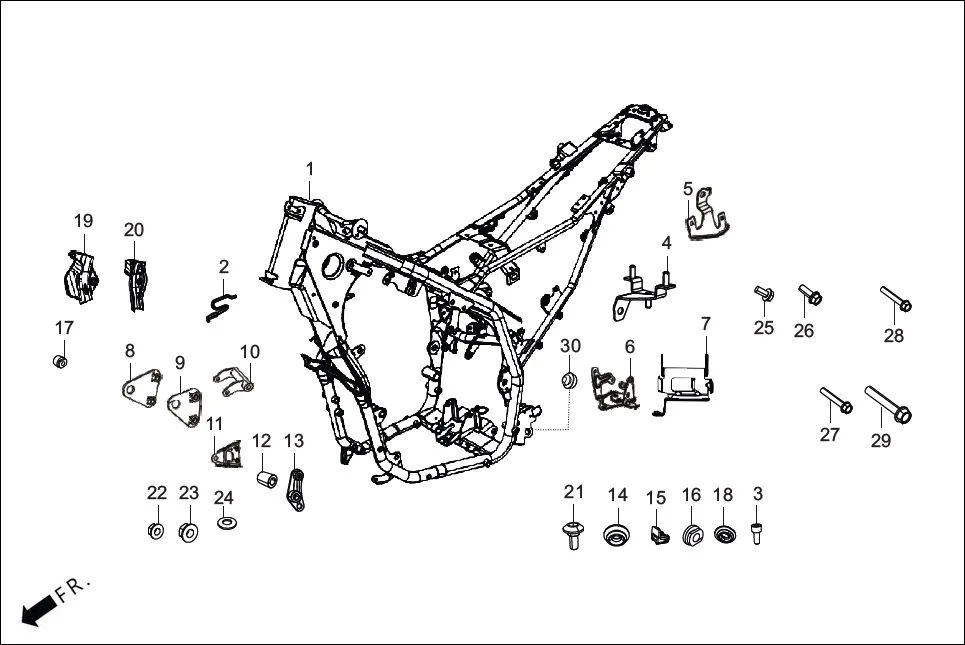

F-25 FRAME BODY diagram showing 83502-RAA-000
Ref #15

Supported Vehicles1

HHERO XPULSE 210LC OBDIIP2 (MAR.,2025)
HERO XPULSE 210LC OBDIIP2 (MAR.,2025)
Current

Related Parts

50100-ACY-100
FRAME BODY COMP
50178-ACY-100
HARNESS FIXATION LH STAY
96600-06016-00
BOLT, SOCKET, 6 X 16
50217-ACY-100
BRKT MT BANK ANGLE
50219-ACY-100
STAY RELAY
50338-ACY-100
BRCKT ECU A
View all 30 parts in this assembly
