HERO OEM Part

52469-ACY-130

COLLAR LINKAGE

Qty Required: 2 Ref #7 in Assembly

Part of Assembly

F-28C
OPTIONAL (REAR CUSHION)
13 parts in this assembly

Assembly Diagram

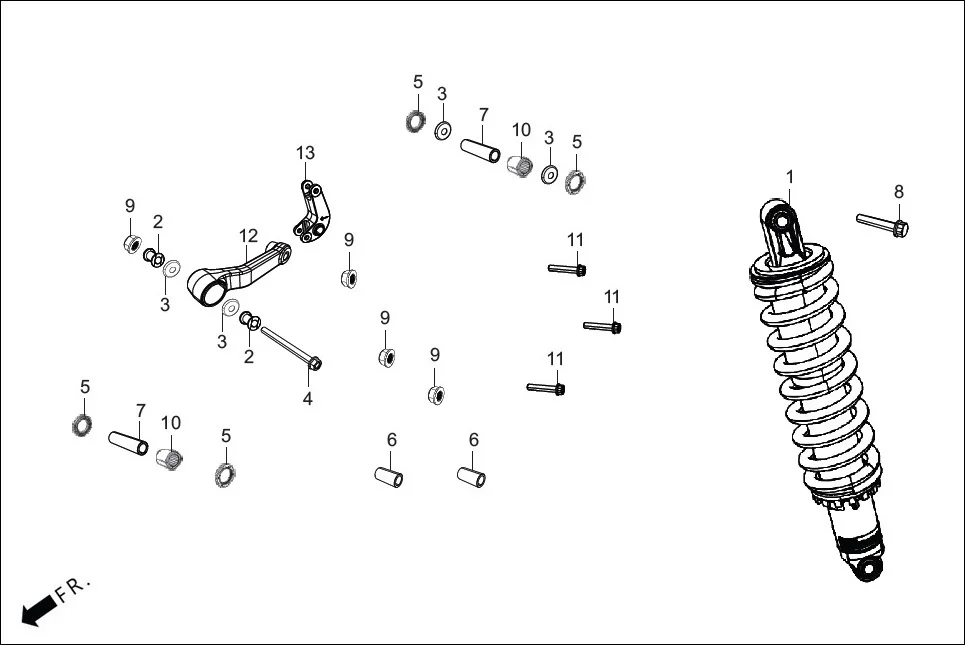

F-28C OPTIONAL (REAR CUSHION) diagram showing 52469-ACY-130
Ref #7

Supported Vehicles1

HHERO XPULSE 210LC OBDIIP2 (MAR.,2025)
HERO XPULSE 210LC OBDIIP2 (MAR.,2025)
Current

Related Parts

52400-ACY-130
CUSHION ASSY REAR
52463-ACY-100
SPACER LINK ROD
52464-ACY-100
COVER CAP LINKAGE
95701-12142-2Y
BOLT FLANGE 12X142
52466-ACD-001
DUST SEAL LINKAGE
52469-ACY-100
COLLAR LINKAGE
View all 13 parts in this assembly
