HERO OEM Part

51412-ACY-100

SPRING REBOUND

Qty Required: 2 Ref #8 in Assembly

Part of Assembly

F-8
FRONT CUSHION / STRG. STEM
24 parts in this assembly

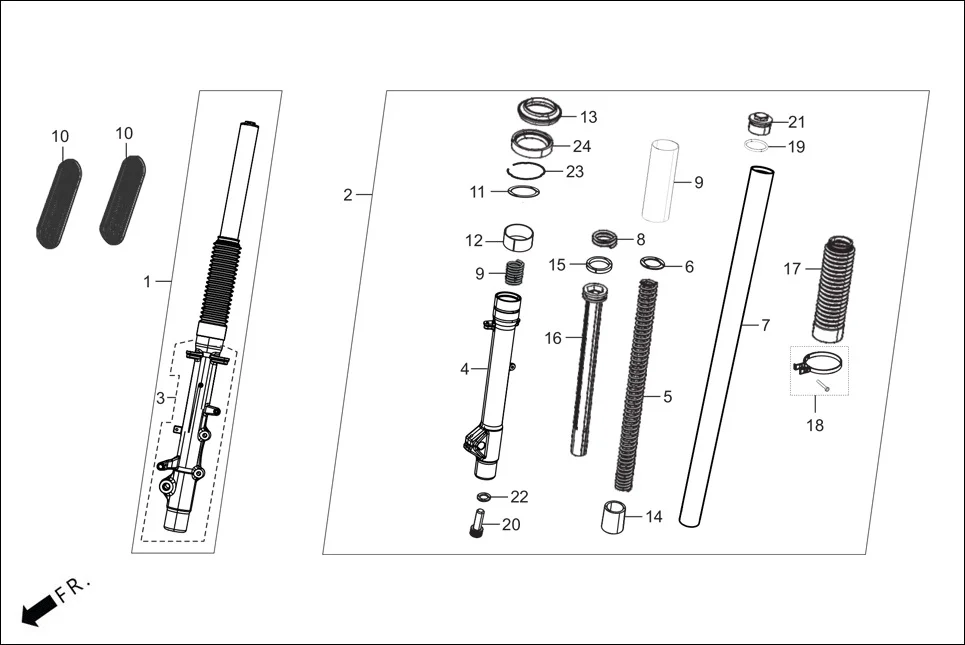

Assembly Diagram

F-8 FRONT CUSHION / STRG. STEM diagram showing 51412-ACY-100
Ref #8

Supported Vehicles1

HHERO XPULSE 210LC OBDIIP2 (MAR.,2025)
HERO XPULSE 210LC OBDIIP2 (MAR.,2025)
Current

Related Parts

ACYBS6A022000G
FORK FRONT RIGHT ASSEMBLY
ACYBS6A023000G
FORK FRONT LEFT ASSEMBLY
51420-ACY-100
CASE COMP R FRONT BOTTOM
51520-ACY-100
CASE COMP L FRONT BOTTOM
51401-ACY-100
SPRING FR FORK
51403-ACY-100
JOINT SPRING
View all 24 parts in this assembly
