HERO OEM Part

43327-ACY-110

BRK HOSE ASSY RR MASTER CYLINDER TO HECU

Qty Required: 1 Ref #25 in Assembly

Part of Assembly

F-10
REAR BRAKE (MASTER CYLINDER)
37 parts in this assembly

Assembly Diagram

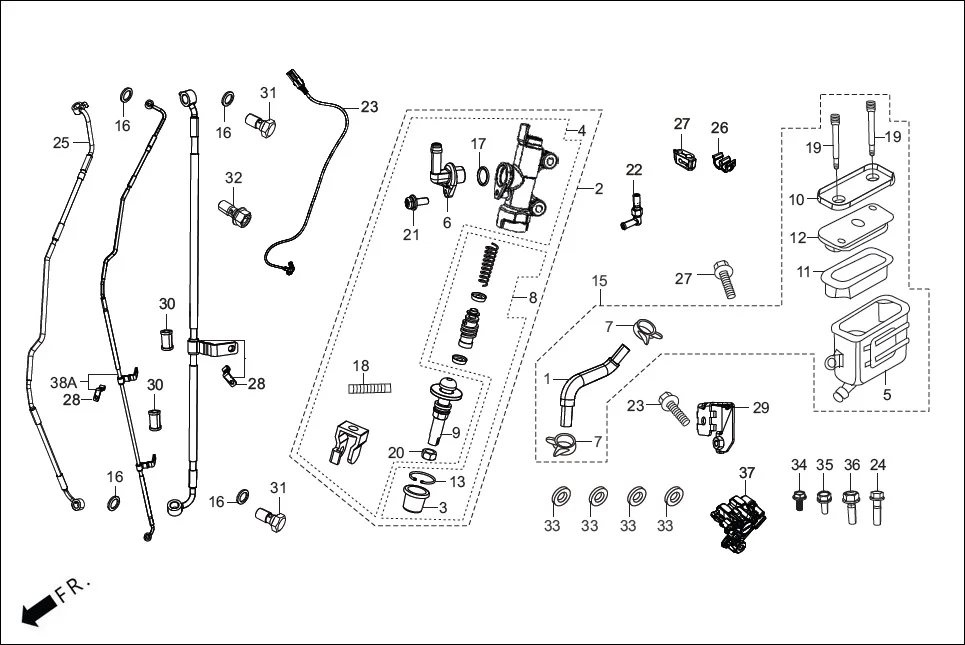

F-10 REAR BRAKE (MASTER CYLINDER) diagram showing 43327-ACY-110
Ref #25

Supported Vehicles1

HHERO XPULSE 210LC OBDIIP2 (MAR.,2025)
HERO XPULSE 210LC OBDIIP2 (MAR.,2025)
Current

Related Parts

43512-ACY-110
HOSE COMP RR BRK MASTER CYL
43500-ACY-110
MASTER CYLINDER ASSY RR BRAKE
43504-MB2-006
BOOT COMP.
43510-ACY-110
SUB ASSY REAR MASTER CYL
43511-KW7-881
OIL CUP COMP.
43503-ABZ-010
CONNECTOR
View all 37 parts in this assembly
