HERO OEM Part

19000-ACY-100

RADIATOR ASSY

Qty Required: 1 Ref #1 in Assembly

Part of Assembly

F-1B
RADIATOR
31 parts in this assembly

Assembly Diagram

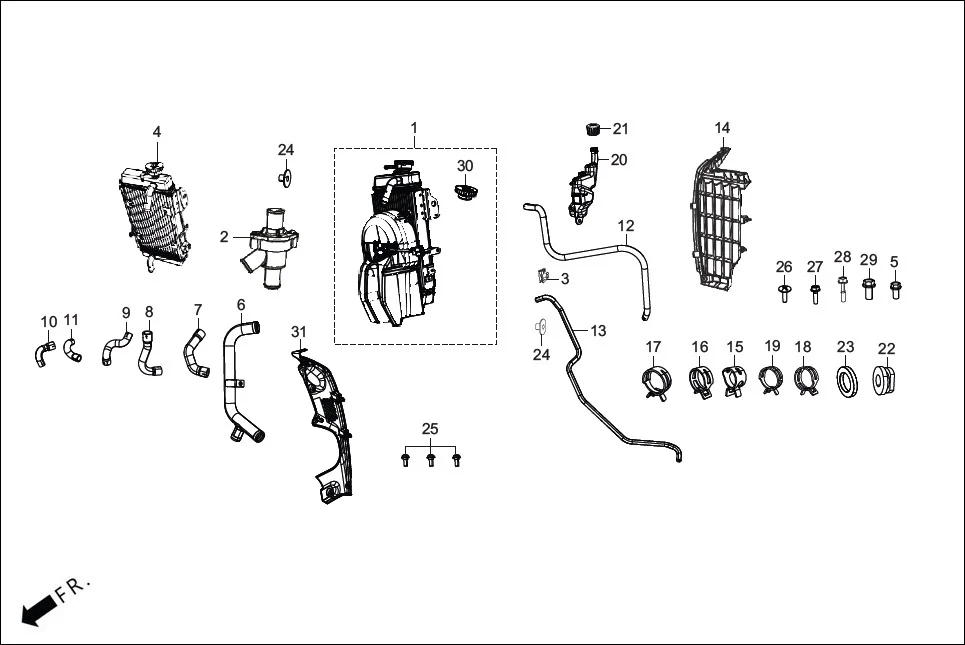

F-1B RADIATOR diagram showing 19000-ACY-100
Ref #1

Supported Vehicles1

HHERO XPULSE 210LC OBDIIP2 (MAR.,2025)
HERO XPULSE 210LC OBDIIP2 (MAR.,2025)
Current

Related Parts

19200-ACA-001
THERMOSTAT ASSY
19014-ACN-000
SET NUT
19010-ACY-100
RADIATOR COMP
96001-06012-07
BOLT, FLANGE, SH., 6 X 12
19070-ACY-100
JOINT HOSE
19224-ACY-100
HOSE HEAD CYLINDER TO THERMOSTAT
View all 31 parts in this assembly
