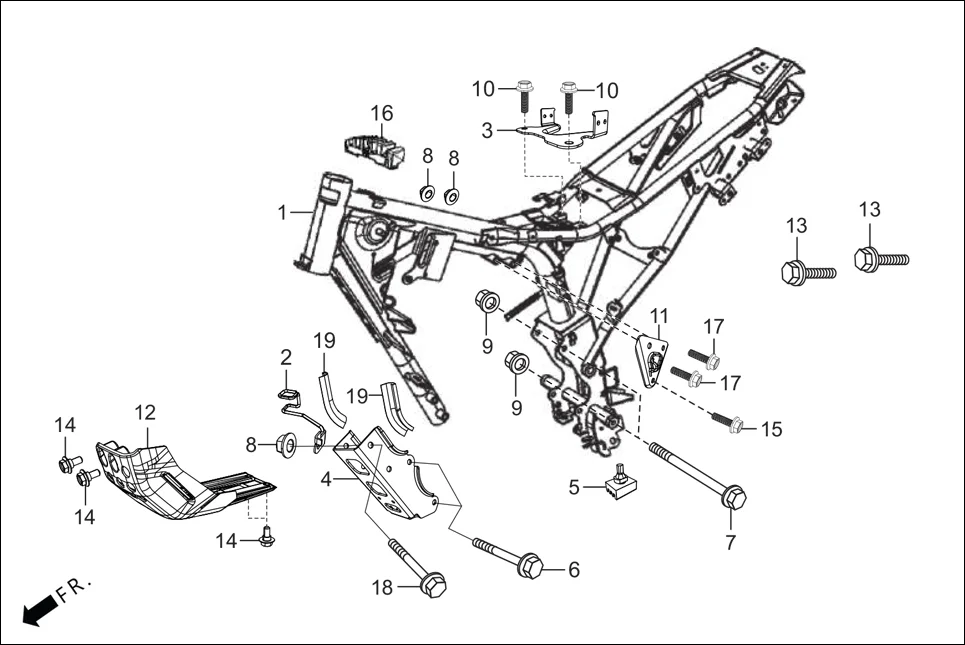

F-25-FRAME BODY
HeroXPULSE 200T OBD II(Jun,2023) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-ABW-800 | FRAME BODY COMP | 1 | |
| 2 | 50157-ABW-800 | GUIDE, CLUTCH CABLE | 1 | |
| 3 | 50337-ABW-J00 | STAY ECU | 1 | |
| 4 | 50351-ABW-800 | PLATE FR ENGINE HANGER | 1 | |
| 5 | 50505-KTN-700 | RUBBER, A STAND STOPPER | 1 | |
| 6 | 95801-08085-00 | BOLT, FLANGE, 8X85 | 2 | |
| 7 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 2 | |
| 8 | 94050-08000 | NUT, FLANGE, 8MM | 5 | |
| 9 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
| 10 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 11 | 50353-ABW-800 | BRKT. ENGINE HANGER UP | 1 | |
| 12 | 64300-ABW-800 | BASH PLATE | 1 | |
| 13 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 14 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 15 | 95701-08032-00 | BOLT, FLANGE, 8×32 | 1 | |
| 16 | 50328-ABW-000 | DAMPER TANK COMP FUEL | 1 | |
| 17 | 95801-08055-00 | BOLT FLANGE 8X55. | 2 | |
| 18 | 95801-08090-00 | BOLT FLANGE 8X90 | 1 | |
| 19 | 52133-ABW-B00 | FILM,PROTECTOR | 2 |
