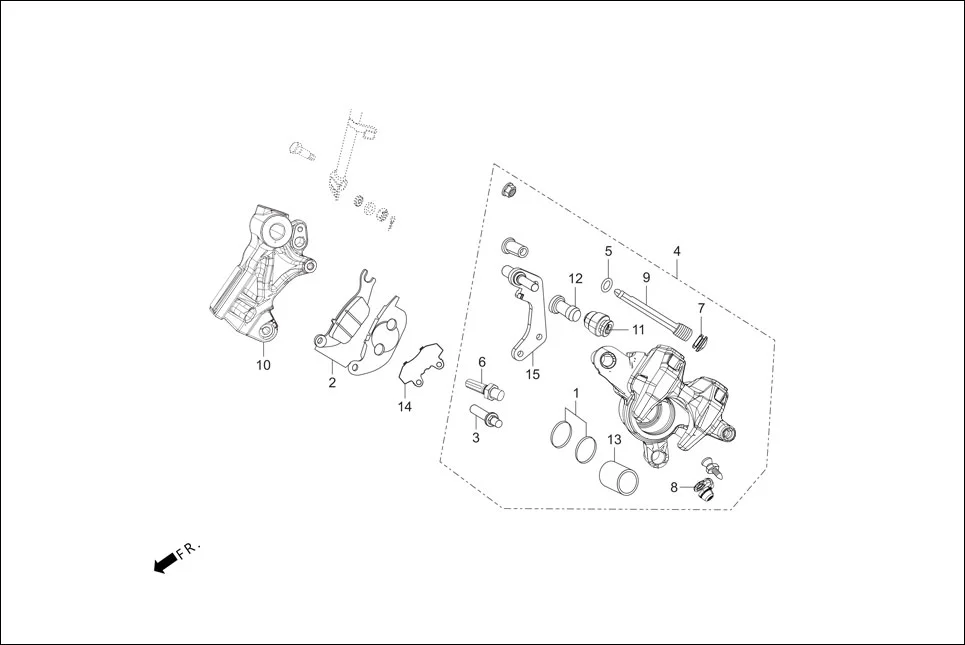

F-8A-REAR BRAKE (CALIPER ASSY. REAR)
HeroXpulse 200FI (May, 2019) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-MA7-405 | SEAL SET, PISTON | 1 | |
| 2 | 06435-AAB-A00 | PAD SET RR | 1 | |
| 3 | 45131-GE2-006L | PIN BOLT A | 1 | |
| 4 | 43150-ABW-100 | CALIPER SUB ASSY. RR | 1 | |
| 5 | 45111-MAJ-G41 | STOPPER RING | 1 | |
| 6 | 45131-GZ0-006L | PIN BOLT | 2 | |
| 7 | 45203-MCC-006 | PLUG,PIN | 1 | |
| 8 | 43353-461-771L | CAP BLEEDER | 1 | |
| 9 | 43215-KGH-901 | PIN,HANGER | 1 | |
| 10 | 43115-ABW-100 | HOLDER RR CALIPER | 2 | |
| 11 | 45133-MA3-006L | BOOT B | 1 | |
| 12 | 45132-166-016L | BUSH BOOT PIN | 1 | |
| 13 | 43107-MA7-006 | PISTON | 1 | |
| 14 | 43114-KRY-971 | SHIM B | 1 | |
| 15 | 43190-ABW-100 | BRKT SUB ASSY RR | 1 |
