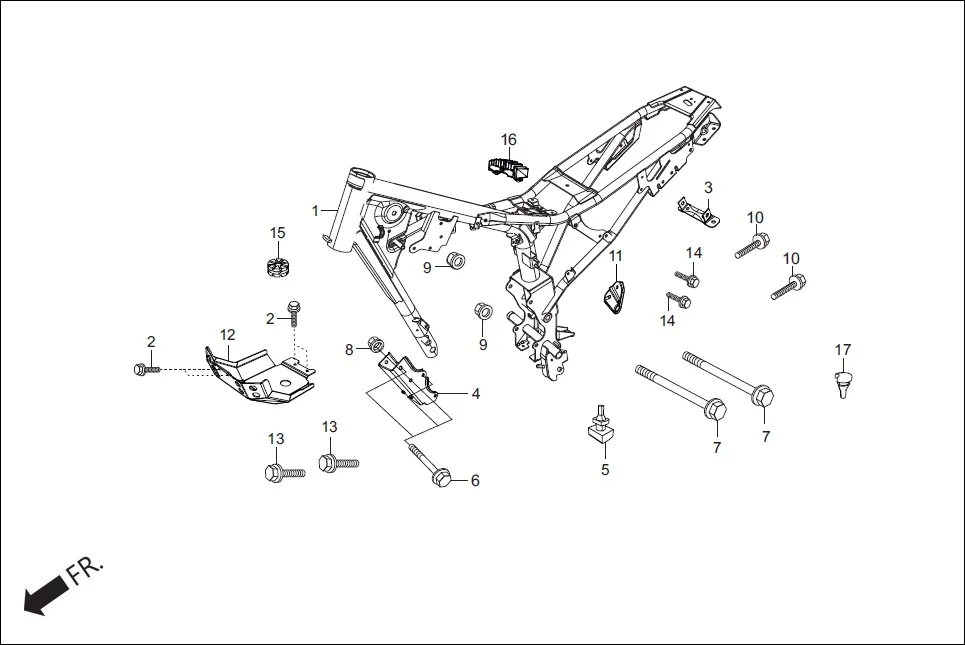

F-25-FRAME BODY
HeroXpulse 200FI (May, 2019) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-ABW-100 | FRAME BODY COMP | 1 | |
| 2 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 4 | |
| 3 | 50337-ABW-200 | STAY ECU | 1 | |
| 4 | 50351-ABW-000 | PLATE FR ENGINE HANGER | 1 | |
| 5 | 50505-KTN-700 | RUBBER, A STAND STOPPER | 1 | |
| 6 | 95801-08085-00 | BOLT, FLANGE, 8X85 | 3 | |
| 7 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 2 | |
| 8 | 94050-08000 | NUT, FLANGE, 8MM | 3 | |
| 9 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
| 10 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 11 | 50112-ABW-000 | BRKT COMP, EXHAUST MNTG | 1 | |
| 12 | 64300-ABW-300 | BASH PLATE | 1 | |
| 13 | 95701-08014-00 | BOLT FLANGE 8X14 | 2 | |
| 14 | 95701-08018-07 | BOLT FLANGE 8 X 18 | 2 | |
| 15 | 64306-ABW-300 | GROMMET, BASH PLATE | 4 | |
| 16 | 50328-ABW-000 | DAMPER TANK COMP FUEL | 1 | |
| 17 | 50137-AAR-000 | PLUG CABLE RETENTION | 2 |
