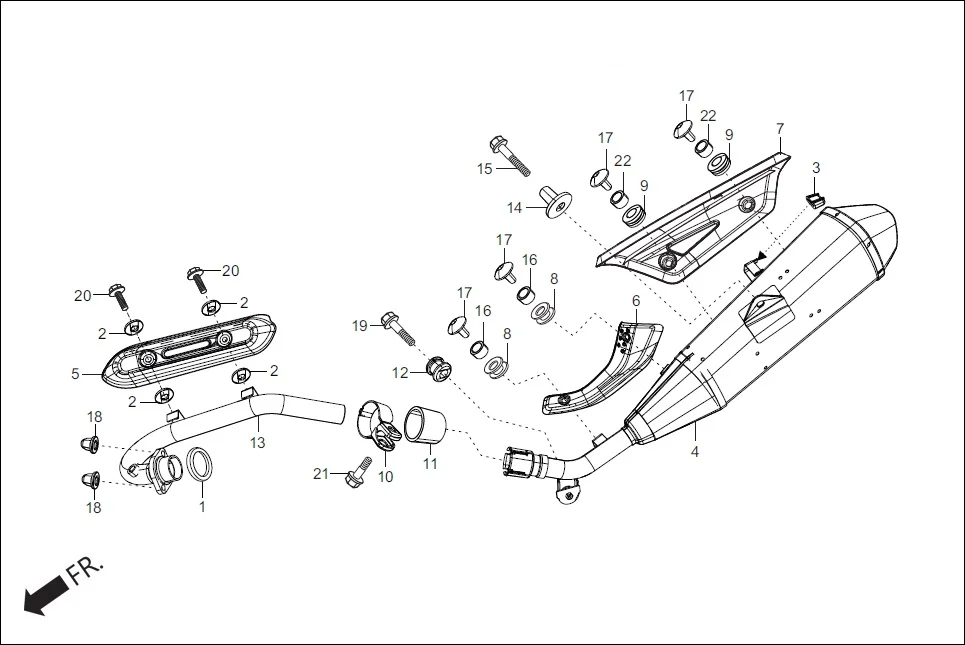

F-14 - MUFFLER
Hero Xpulse 200FI (May, 2019) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-KRY-930 | GASKET, EXHAUST PIPE | 1 | |
| 2 | 18292-KTP-900 | PACKING, PROTECTOR | 4 | |
| 3 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 4 | 18310-ABW-300 | MUFFLER COMP. EXHAUST | 1 | |
| 5 | 18312-ABW-100 | COVER MUFFLER - 1 | 1 | |
| 6 | 1831C-ABW-101 | COVER COMP. MUFFLER - 2 | 1 | |
| 7 | 1831A-ABW-300 | MUFFLER PROTECTOR | 1 | |
| 8 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 9 | 18357-ABW-100 | RUBBER, PROTECTOR MOUNT | 2 | |
| 10 | 18371-ABW-100 | EXHAUST CLAMP | 1 | |
| 11 | 18391-ABW-100 | PACKING MUFFLER | 1 | |
| 12 | 18421-ABA-000 | RUBBER MUFF MOUNT | 1 | |
| 13 | 18320-ABW-300 | PIPE COMP. EXHAUST | 1 | |
| 14 | 18442-ABA-000 | COLLAR MUFFLER MOUNT | 1 | |
| 15 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 1 | |
| 16 | 33619-459-840A | COLLAR,WINKER STAY | 2 | |
| 17 | 90107-ABW-300 | BOLT SPL. 6X14 | 4 | |
| 18 | 90305-ABW-300 | NUT 8MM EXP. | 2 | |
| 19 | 95701-08032-00 | BOLT, FLANGE, 8×32 | 1 | |
| 20 | 96001-06012-02 | BOLT FLANGE 6X12 | 2 | |
| 21 | 95701-08035-07 | BOLT, FLANGE, 8X35 | 1 | |
| 22 | 17221-KA4-300 | COLLAR CONN TUBE | 2 | |
