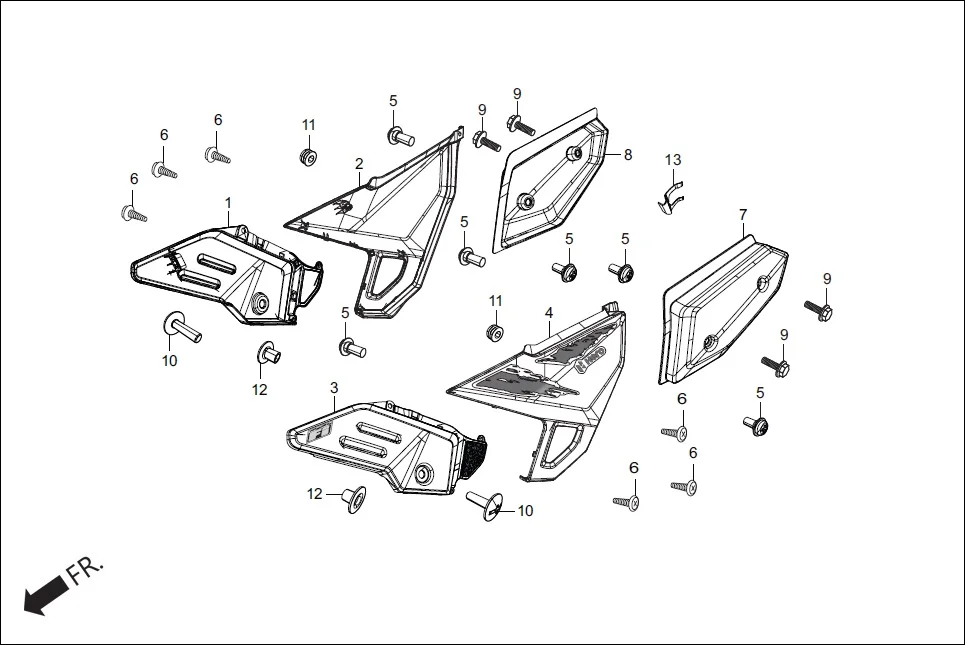

F-12 - SIDE COVER
Hero Xpulse 200FI (May, 2019) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83700-ABW-300R | SET COVER B, R SIDE (MAGM, NH-303M) | 1 | |
| 2 | 83500-ABW-300R | SET COVER A, R SIDE (MAGM, NH-303M) | 1 | |
| 2 | 83500-ABW-300S | SET COVER A, R SIDE (GR(BR)-001M(F)) | 1 | |
| 2 | 83500-ABW-300T | SET COVER A, R SIDE (PFW, NH-341P) | 1 | |
| 2 | 83500-ABW-100R | SET COVER A R SIDE (BLACK NH-1) | 1 | |
| 2 | 83500-ABW-100S | SET COVER A R SIDE (SPORTS RED) | 1 | |
| 3 | 83800-ABW-300R | SET COVER B, L SIDE (MAGM, NH-303M) | 1 | |
| 4 | 83600-ABW-300R | SET COVER A, L SIDE (MAGM, NH-303M) | 1 | |
| 4 | 83600-ABW-300S | SET COVER A, L SIDE (GR(BR)-001M(F)) | 1 | |
| 4 | 83600-ABW-300T | SET COVER A, L SIDE (PFW, NH-341P) | 1 | |
| 4 | 83600-ABW-100R | SET COVER A L SIDE (BLACK NH-1) | 1 | |
| 4 | 83600-ABW-100S | SET COVER A L SIDE (SPORTS RED) | 1 | |
| 5 | 90101-GE0-000 | SCREW, HINGE PATCH | 6 | |
| 6 | 93903-34210 | SCREW TAPPING 4X10 | 6 | |
| 7 | 77240-ABW-000 | ACCESSORY MOUNTING COVER L | 1 | |
| 8 | 77230-ABW-000 | ACCESSORY MOUNTING COVER R | 1 | |
| 9 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 4 | |
| 10 | 90105-KVE-860 | BOLT,SPECIAL 6X22 | 2 | |
| 11 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 12 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 2 | |
| 13 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
