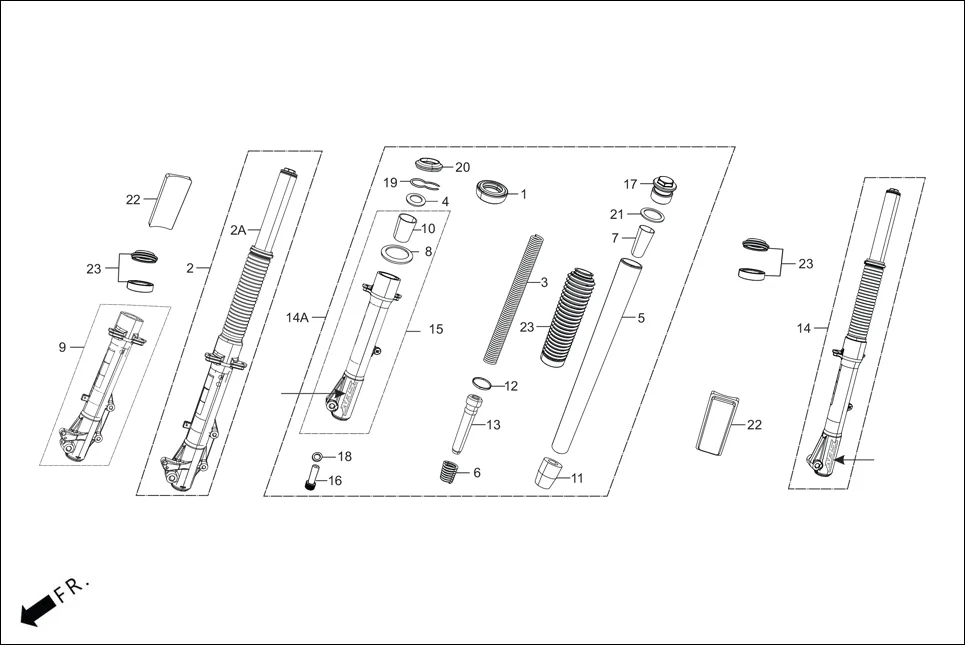

F-6A - FRONT CUSHION

Hero XPULSE 200 4V(NOV.,2024) · 25 parts

Parts in This Assembly (25)

Ref #	Part Number	Description	Qty
1	91255-AAB-A02	SEAL OIL	2
2	51460-ABW-300R	SET FORK ASSY R FRONT (MAT AXIS GRAY METALLIC)	1
2	51400-ABW-301	FORK ASSY R FR (MAGM, NH-303M)	1
3	51401-ABW-101	SPRING. FR FORK	2
4	51403-ABW-001	JOINT SPRING	2
5	51410-ABW-101	PIPE COMP. FR FORK	2
6	51412-ABW-101	SPRING, REBOUND	2
7	51413-ABW-101	SPACER TUBE/COLLAR SPRING	2
8	51419-AAB-A02	RING BACKUP (PLAIN WASHER)	2
9	51420-ABW-301	CASE COMP. R FR BOTTOM	1
10	51423-AAB-A02	SLIDE BUSH	2
11	51432-ABW-001	PIECE. OIL LOCK	2
12	51437-ABW-001	RING, PISTON	2
13	51440-ABW-101	PIPE SEAT	2
14	51560-ABW-300R	SET FORK ASSY L FRONT (MAT AXIS GRAY METALLIC)	1
14	51500-ABW-301	FORK ASSY L FR (MAGM, NH-303M)	1
15	51520-ABW-301	CASE COMP. L FR BOTTOM	1
16	90116-AAB-A02	BOLT SOCKET	2
17	90123-AAB-A02	BOLT FR FORK	2
18	90544-AAB-A02	WASHER SPECIAL	2
19	90601-AAB-A02	RING OIL SEAL STOP	2
20	91254-AAB-A02	SEAL DUST	2
21	91356-AAB-A02	O RING	2
22	33741-AAS-001	REFLECTOR FRONT AMBER	2
23	51615-ABW-101	BOOT FR. FORK	2
