F-30-CAUTION LABEL

HeroXPULSE 200 4V(NOV.,2024) · 2 parts

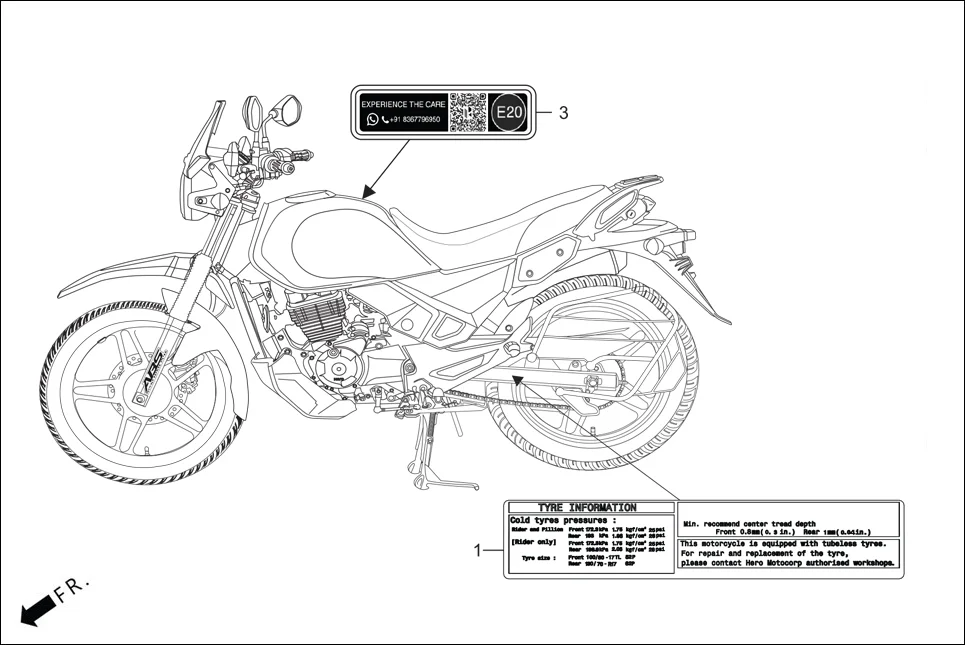

F-30 CAUTION LABEL assembly diagram for Hero XPULSE 200 4V(NOV.,2024)

Parts in This Assembly (2)

Ref #Part NumberDescriptionQty
187505-ABW-100LABEL TYRE1
287570-AAE-C30CAUTION STICKER WITH QR CODE & E20 MARK1
