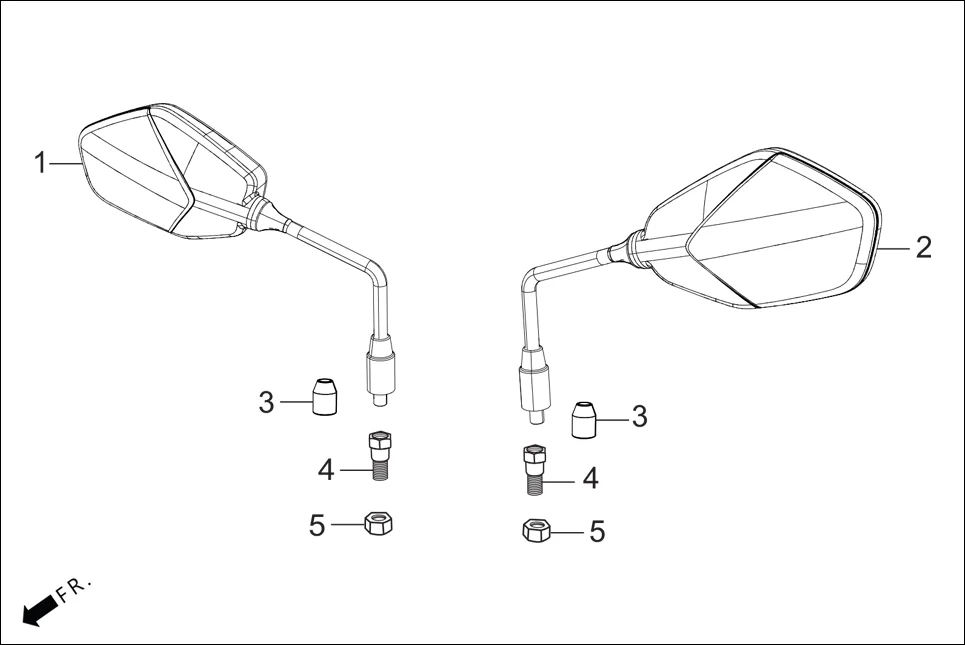

F-3A_CONNECT-MIRROR ASSY.
HeroXPULSE 200 OBDII 4V(April,2023) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88110-ABW-901A | MIRROR ASSY R BACK (MOON YELLOW) | 1 | |
| 1 | 88110-ABW-901C | MIRROR ASSY R BACK (MAT AXIS GRAY METALLIC) | 1 | |
| 2 | 88120-ABW-901A | MIRROR ASSY L BACK(MOON YELLOW) | 1 | |
| 2 | 88120-ABW-901C | MIRROR ASSY L BACK(MAT AXIS GRAY METALLIC) | 1 | |
| 3 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 4 | 90003-MY5-720 | BOLT,ADPT.10MM | 2 | |
| 5 | 90201-MW3-620 | NUT, HEX., 10MM | 2 |
