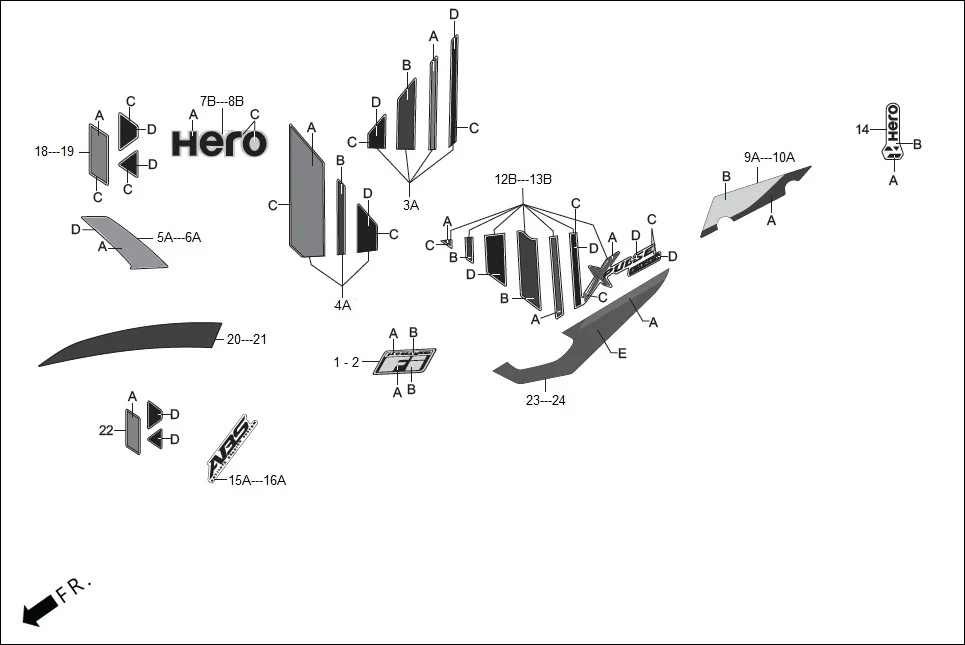

F-27A_PRO - STRIPE/ MARKS
Hero XPULSE 200 OBDII 4V(April,2023) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 85402-ABW-200R | PROGRAMMED FI MARK R SIDE (TYPE-1) | 1 | |
| 2 | 85403-ABW-200R | PROGRAMMED FI MARK L SIDE (TYPE-1) | 1 | |
| 3 | 86761-ADR-000R | STRIPE A R FUEL TANK (TYPE-1) | 1 | |
| 4 | 86762-ADR-000R | STRIPE A L FUEL TANK (TYPE-1) | 1 | |
| 5 | 86763-ADR-000R | STRIPE B R FUEL TANK (TYPE-1) | 1 | |
| 6 | 86764-ADR-000R | STRIPE B L FUEL TANK (TYPE-1) | 1 | |
| 7 | 86769-ADR-000R | STRIPE D R FUEL TANK (TYPE-1) | 1 | |
| 8 | 86767-ADR-000R | STRIPE D L FUEL TANK (TYPE-1) | 1 | |
| 9 | 86771-ADR-000R | STRIPE ACC MOUNTING COVER R (TYPE-1) | 1 | |
| 10 | 86772-ADR-000R | STRIPE ACC MOUNTING COVER L (TYPE-1) | 1 | |
| 12 | 86783-ABW-L30R | STRIPE A SIDE COVER A R SIDE (TYPE-1) | 1 | |
| 13 | 86784-ABW-L30R | STRIPE A SIDE COVER A L SIDE (TYPE-1) | 1 | |
| 14 | 86785-ABW-000R | MARK HERO TAIL LGHT COVER (TYPE-1) | 1 | |
| 15 | 86797-ABW-100R | MARK ABS R SIDE (TYPE-1) | 1 | |
| 16 | 86798-ABW-100R | MARK ABS L SIDE (TYPE-1) | 1 | |
| 18 | 86765-ADR-000R | STRIPE C R FUEL TANK (TYPE-1) | 1 | |
| 19 | 86766-ADR-000R | STRIPE C L FUEL TANK (TYPE-1) | 1 | |
| 20 | 86776-ABW-L30R | STRIPE R FR FENDER (TYPE-1) | 1 | |
| 21 | 86777-ABW-L30R | STRIPE L FR FENDER (TYPE-1) | 1 | |
| 22 | 86778-ADR-000R | STRIPE FR FENDER (TYPE-1) | 1 | |
| 23 | 86785-ADR-000R | STRIPE B SIDE COVER A R SIDE (TYPE-1) | 1 | |
| 24 | 86786-ADR-000R | STRIPE B SIDE COVER A L SIDE (TYPE-1) | 1 | |
