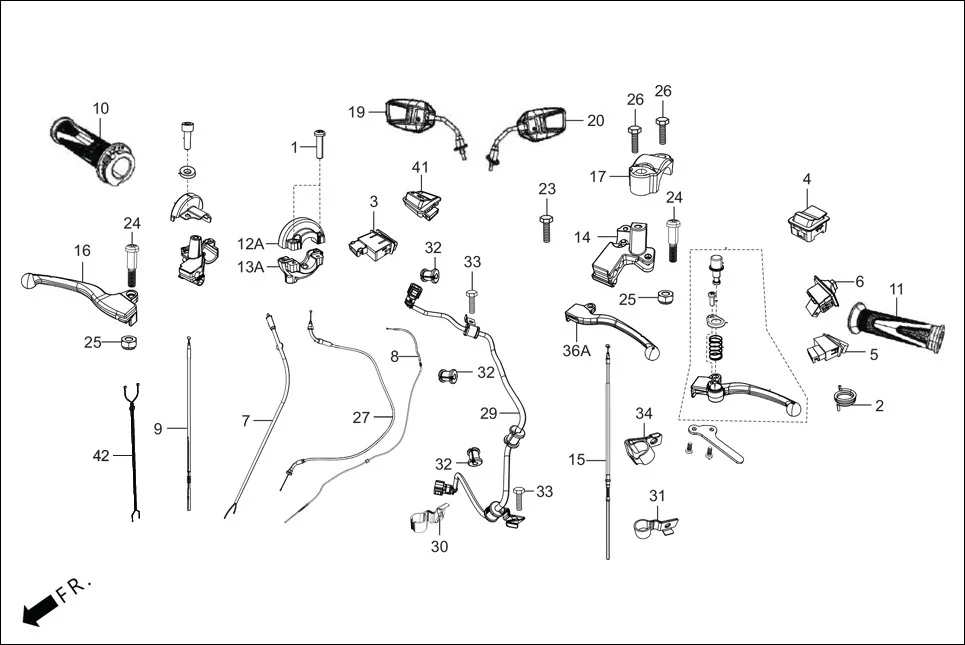

F-3-ZX-HANDLE LEVER/SWITCH/CABLE
HeroXOOM 110 BSVI OBD II(April,2023) · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 2 | 94203-AAW-000 | SPRING HANDLE LEVER | 1 | |
| 3 | 35160-AAL-901 | SWITCH, UNIT START | 1 | |
| 4 | 35170-ABH-501 | SWITCH, UNIT DIMMER | 1 | |
| 5 | 35180-KTP-890 | SWITCH, UNIT HORN | 1 | |
| 6 | 35200-ABH-501 | SWITCH, UNIT WINKER | 1 | |
| 7 | 35340-KTP-890 | SWITCH ASSY., FR. STOP | 1 | |
| 8 | 43450-AAW-D10 | CABLE COMP, RR BRAKE | 1 | |
| 9 | 45450-AAW-D00 | CABLE COMP FR BRK | 1 | |
| 10 | 53140-AAW-D00 | GRIP COMP THROT . | 1 | |
| 11 | 53166-ABH-500 | GRIP L HANDLE | 1 | |
| 12 | 53167-AAW-D10 | HOUSING UPPER THROTTLE | 1 | |
| 13 | 53168-AAW-D10 | HOUSING UNDER THROTTLE | 1 | |
| 14 | 53172-AAW-D00 | BRACKET L HANDLE | 1 | |
| 15 | 45440-AAW-D00 | CABLE COMP LH FR BRK | 1 | |
| 16 | 53175-ABV-000 | LEVER COMP | 1 | |
| 17 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 19 | 88110-AAW-D01 | MIRROR ASSY R BACK | 1 | |
| 20 | 88120-AAW-D01 | MIRROR ASSY L BACK | 1 | |
| 23 | 95801-10050-00 | BOLT FLANGE 10X50 | 1 | |
| 24 | 90115-05026-03 | SCREW HANDLE LEVER PIVOT | 1 | |
| 25 | 90304-KPL-900 | NUT HEX 5 MM | 1 | |
| 26 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
| 27 | 17910-AAW-D00 | CABLE COMP THROTTLE | 1 | |
| 27 | 17910-AAW-D01 | CABLE COMP THROTTLE | 1 | |
| 29 | 17570-AAW-D00 | HOSE COMP FUEL FEED | 1 | |
| 30 | 45156-AAL-900 | CLAMP, FUEL HOSE | 1 | |
| 31 | 45160-AAW-D00 | CLAMP FUEL HOSE | 1 | |
| 32 | 46428-AAL-900 | GROMMET, FUEL HOSE | 3 | |
| 33 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 34 | 45156-AAW-D10 | CLAMPER D | 1 | |
| 36 | 53178-ABV-010 | LEVER L HANDLE | 1 | |
| 41 | 35190-ABS-001 | SW UNIT I3S | 1 | |
| 42 | 32102-ABG-000 | SUB CORD | 1 |
