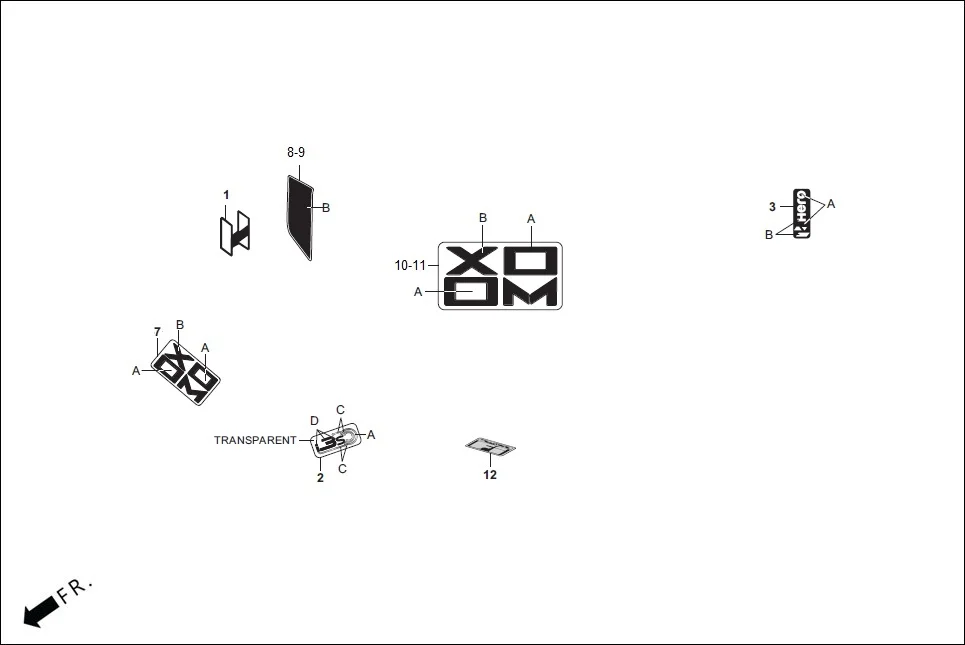

F-26-VX - MARK/STRIPE
Hero XOOM 110 BSVI OBD II(April,2023) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86830-ABW-800 | EMBLEM WINDSCREEN SUB. ASSY. | 1 | |
| 2 | 86216-AAW-D00S | MARK I3S(TYPE-2) | 1 | |
| 3 | 87117-ABZ-000R | MARK HERO RR FENDER B (TYPE-1) | 1 | |
| 7 | 86770-AAW-D00R | STRIPE FRONT FENDER(TYPE-1) | 1 | |
| 7 | 86770-AAW-D00S | STRIPE FRONT FENDER(TYPE-2) | 1 | |
| 7 | 86770-AAW-D00T | STRIPE FRONT FENDER(TYPE-3) | 1 | |
| 8 | 86782-AAW-D00R | STRIPE R COVER FR UPPER(TYPE-1) | 1 | |
| 9 | 86783-AAW-D00R | STRIPE L COVER FR UPPER(TYPE-1) | 1 | |
| 10 | 87110-AAW-D00R | STRIPE R BODY COVER(TYPE-1) | 1 | |
| 10 | 87110-AAW-D00S | STRIPE R BODY COVER(TYPE-2) | 1 | |
| 10 | 87110-AAW-D00T | STRIPE R BODY COVER(TYPE-3) | 1 | |
| 11 | 87111-AAW-D00R | STRIPE L BODY COVER(TYPE-1) | 1 | |
| 11 | 87111-AAW-D00S | STRIPE L BODY COVER(TYPE-2) | 1 | |
| 11 | 87111-AAW-D00T | STRIPE L BODY COVER(TYPE-3) | 1 | |
| 12 | 85401-AAW-D00 | PROGRAMMED FI MARK | 1 | |
