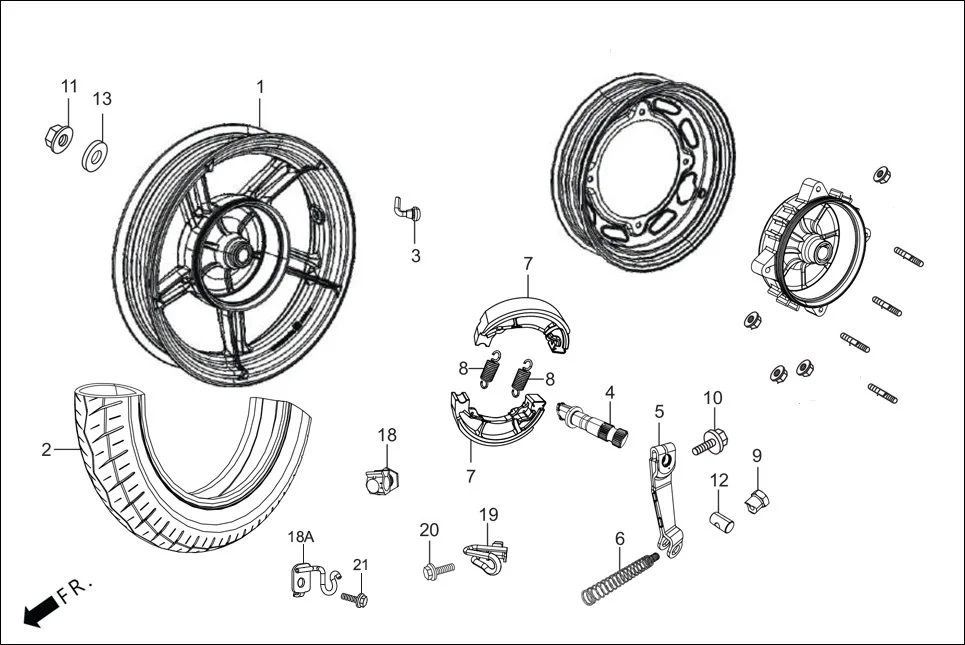

F-11-VX - REAR WHEEL
Hero XOOM 110 BSVI OBD II(April,2023) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42601-AAW-D0099 | WHEEL COMP. RR | 1 | |
| 3 | 42753-AAL-001 | RIM,VALVE | 1 | |
| 4 | 43141-AAW-D10 | CAM REAR BRAKE | 1 | |
| 5 | 43410-AAW-D10 | ARM REAR BRAKE | 1 | |
| 6 | 43472-ACP-000 | SPG RR BRAKE ARM | 1 | |
| 7 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 8 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 9 | 95015-42000 | NUT B ADJUST | 1 | |
| 10 | 90112-AAW-D00 | BOLT FLANGE SH.6X28 | 1 | |
| 11 | 90305-KPL-900 | NUT, HEX, SPL., 16MM | 1 | |
| 12 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 13 | 90501-KPL-900 | WASHER, 16 MM | 1 | |
| 18 | 45163-AAW-D10 | GUIDE BRAKE CABLE | 1 | |
| 18 | 45163-AAW-D00 | GUIDE CABLE | 1 | |
| 19 | 45158-AAW-D10 | CLAMPER C | 1 | |
| 20 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 2 | |
| 21 | 95701-08012-07 | BOLT FLANGE 8X12 | 1 | |
