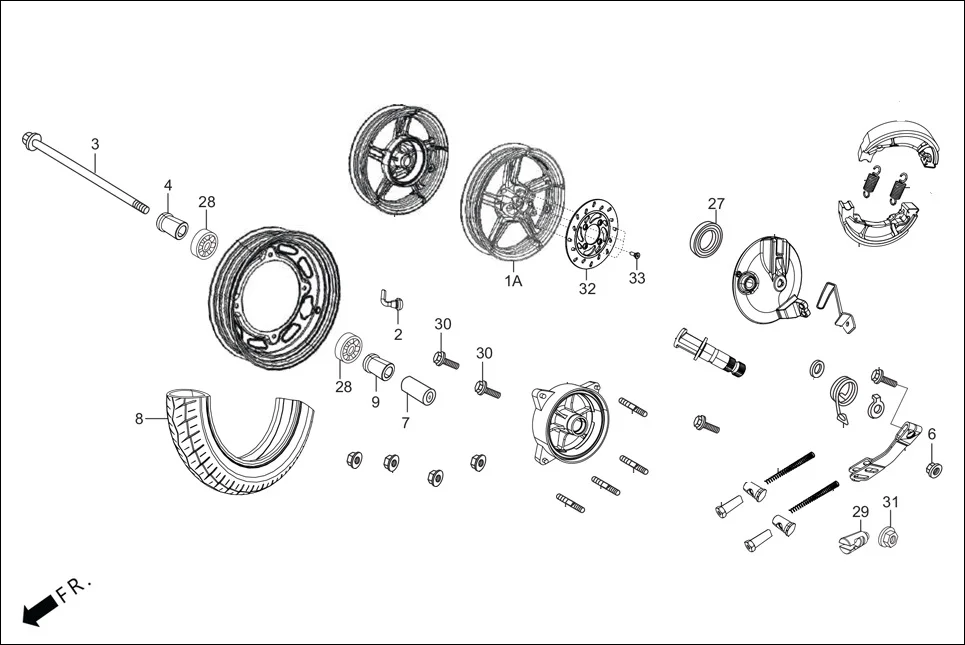

F-10-ZX - FRONT WHEEL
Hero XOOM 110 BSVI OBD II(April,2023) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 44601-AAW-D1099 | WHEEL COMP FRONT | 1 | |
| 2 | 42753-AAL-001 | RIM,VALVE | 1 | |
| 3 | 44301-AAW-000 | AXLE FR. WHEEL | 1 | |
| 4 | 44311-KPL-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 6 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 7 | 44620-AAW-000 | COLLAR FR WHEEL DISTANCE | 1 | |
| 8 | 44711-AAW-00099 | TYRE FR | 1 | |
| 9 | 44311-ABG-010 | COLLAR, FR. WHEEL SIDE | 1 | |
| 27 | 90754-KPL-900 | SEAL, DUST 20 X 32 X 5 | 1 | |
| 28 | 90912-KPL-900 | BEARING BALL RADIAL 6201(U) | 2 | |
| 29 | 43455-ABG-010 | JOINT BRK ARM | 1 | |
| 30 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 2 | |
| 31 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 31 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 32 | 45251-ABG-010 | DISC FRONT BRAKE. | 1 | |
| 33 | 90105-MK5-010 | BOLT, FR., DISC, 8 X 22 | 4 | |
