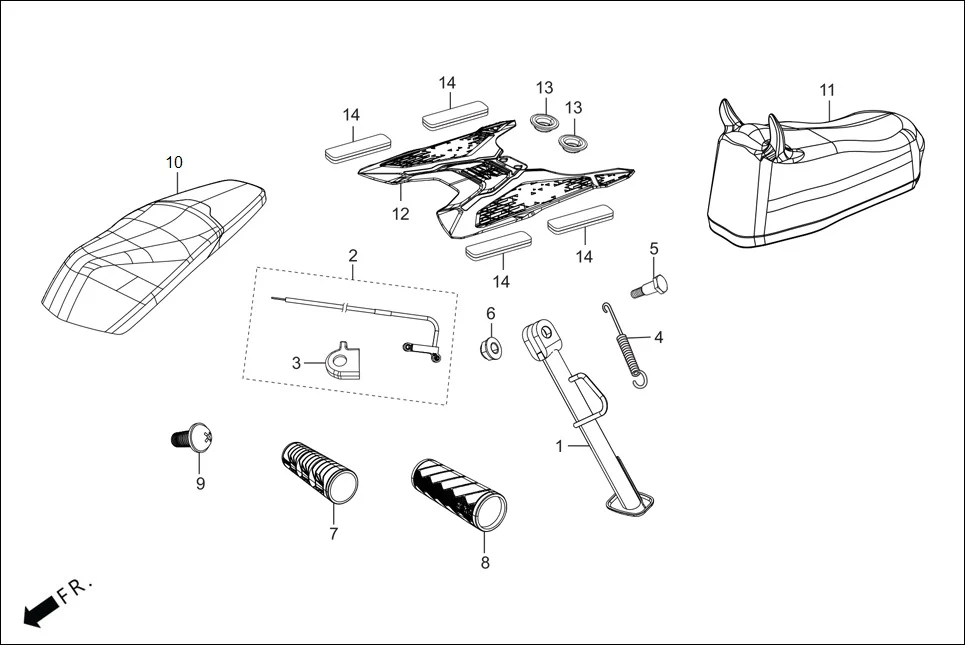

FOP-4 - SIDE STAND/COVER ASSY. SEAT(OPTIONAL)
Hero XOOM BS6 FI(Jan,2023) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50530-AAW-D00 | BAR COMP SIDE STAND | 1 | |
| 2 | 3514A-ABH-50099 | SENSOR SIDE STAND ASSY | 1 | |
| 3 | 35130-ABH-502 | MAGNET HOLDER ASSY. | 1 | |
| 4 | 50536-KPL-900 | SPG. SIDE SET | 1 | |
| 5 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 6 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 7 | 99620-AAW-001 | GRIP COVER - FLUID (SET OF 2) | 2 | |
| 8 | 99621-AAW-001 | GRIP COVER - WEDGE (SET OF 2) | 2 | |
| 9 | 93891-05014-10 | SCREW WASH,5X14 | 1 | |
| 10 | 99630-AAW-D00 | COVER ASSY SEAT | 1 | |
| 10 | 99631-AAW-D00 | COVER ASSY SEAT | 1 | |
| 10 | 99632-AAW-D00 | COVER ASSY SEAT | 1 | |
| 10 | 99634-AAW-D00 | COVER ASSY SEAT | 1 | |
| 12 | 99615-AAW-D010-20 | FLOOR MAT(CYAN PENTONE 3125C) | 1 | |
| 13 | 99616-AAW-D01 | FLOOR MAT CAP | 2 | |
