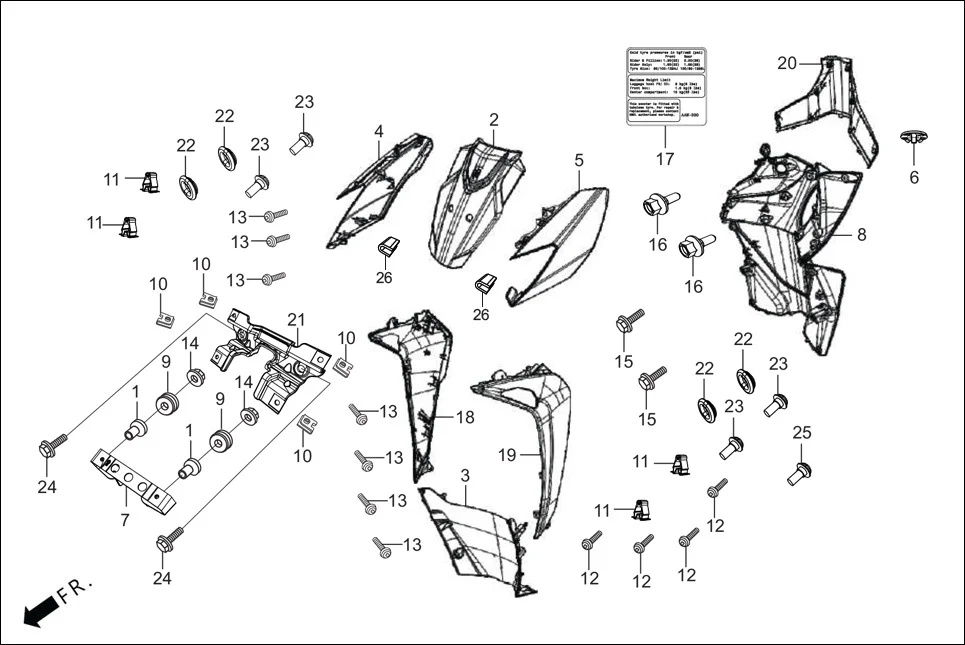

F-6-ZX - FR. & INNER COVER
Hero XOOM BS6 FI(Jan,2023) · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61104-428-000 | COLLAR, FR, FENDER | 1 | |
| 2 | 64340-AAW-D00R | SET COVER FRONT UPPER(POLESTAR BLUE) | 1 | |
| 2 | 64340-AAW-D00S | SET COVER FRONT UPPER(BLACK NH-1) | 1 | |
| 3 | 64309-AAW-D00 | FRONT COVER LOWER | 1 | |
| 4 | 64300-AAW-D00R | COVER FRONT R(POLESTAR BLUE) | 1 | |
| 4 | 64300-AAW-D00S | COVER FRONT R(BLACK NH-1) | 1 | |
| 4 | 64300-AAW-D00T | COVER FRONT R(SPORTS RED) | 1 | |
| 4 | 64300-AAW-D00V | COVER FRONT R(MATT ARBAX ORANGE) | 1 | |
| 5 | 64301-AAW-D00R | COVER FRONT L(POLESTAR BLUE) | 1 | |
| 5 | 64301-AAW-D00S | COVER FRONT L(BLACK NH-1) | 1 | |
| 5 | 64301-AAW-D00T | COVER FRONT L(SPORTS RED) | 1 | |
| 5 | 64301-AAW-D00V | COVER FRONT L(MATT ARBAX ORANGE) | 1 | |
| 6 | 81133-AAL-500 | CAP CHOKE CABLE | 1 | |
| 6 | 81133-AAW-500 | CAP CHOKE CABLE | 1 | |
| 7 | 64311-AAW-D00 | STAY FRONT NO PLATE | 1 | |
| 8 | 81131-AAW-D00 | COVER INNER | 1 | |
| 9 | 84703-425-000 | RUBBER TAIL LIGHT (MOUNT) | 2 | |
| 10 | 90344-AAW-000 | NUT CLIP 5MM | 4 | |
| 11 | 90666-AAB-000 | CLIP SNAP FIT | 4 | |
| 12 | 93903-25380 | SCREW TAPPING 5X16 | 8 | |
| 13 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 7 | |
| 14 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 15 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 16 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 17 | 87505-AAW-D00 | LABEL TYRE | 1 | |
| 18 | 64304-AAW-D00X | COVER FRONT LOWER R(MATT RAY SILVER) | 1 | |
| 19 | 64350-AAW-D00S | SET COVER FRONT LOWER L(BLACK NH-1) | 1 | |
| 20 | 81149-AAW-D00Z | COVER INNER OUTER(PIGMENTED PP GREY) | 1 | |
| 21 | 64312-AAW-D00 | FRONT JOINER BRACKET | 1 | |
| 22 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 4 | |
| 23 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 24 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 25 | 90113-KST-940 | BOLT SIDE COVER | 1 | |
| 26 | 77232-KVE-900 | CUSHION COWL CENTER B. | 2 | |
