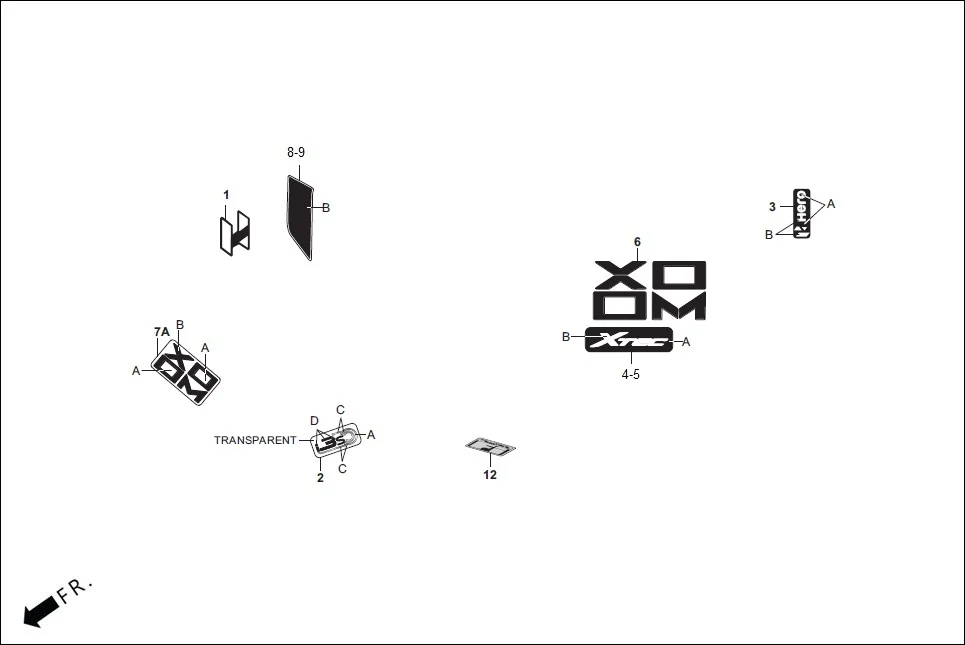

F-26-ZX - MARK/STRIPE
Hero XOOM BS6 FI(Jan,2023) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86830-ABW-800 | EMBLEM WINDSCREEN SUB. ASSY. | 1 | |
| 2 | 86216-AAW-D00S | MARK I3S(TYPE-2) | 1 | |
| 3 | 87117-ABZ-000R | MARK HERO RR FENDER B (TYPE-1) | 1 | |
| 4 | 86831-AAW-D10R | MARK XTEC R(TYPE-1) | 1 | |
| 4 | 86831-AAW-D10S | MARK XTEC R(TYPE-2) | 1 | |
| 4 | 86831-AAW-D10T | MARK XTEC R(TYPE-3) | 1 | |
| 4 | 86831-AAW-D10U | MARK XTEC R(TYPE-4) | 1 | |
| 5 | 86931-AAW-D10R | MARK XTEC L(TYPE-1) | 1 | |
| 5 | 86931-AAW-D10S | MARK XTEC L(TYPE-2) | 1 | |
| 5 | 86931-AAW-D10T | MARK XTEC L(TYPE-3) | 1 | |
| 5 | 86931-AAW-D10U | MARK XTEC L(TYPE-4) | 1 | |
| 6 | 86833-AAW-D00 | EMBLEM BODY COVER | 2 | |
| 7 | 86770-AAW-D10R | STRIPE FRONT FENDER(TYPE-1) | 1 | |
| 7 | 86770-AAW-D10S | STRIPE FRONT FENDER(TYPE-2) | 1 | |
| 7 | 86770-AAW-D10T | STRIPE FRONT FENDER(TYPE-3) | 1 | |
| 7 | 86770-AAW-D10U | STRIPE FRONT FENDER(TYPE-4) | 1 | |
| 8 | 86782-AAW-D00R | STRIPE R COVER FR UPPER(TYPE-1) | 1 | |
| 9 | 86783-AAW-D00R | STRIPE L COVER FR UPPER(TYPE-1) | 1 | |
| 12 | 85401-AAW-D00 | PROGRAMMED FI MARK | 1 | |
