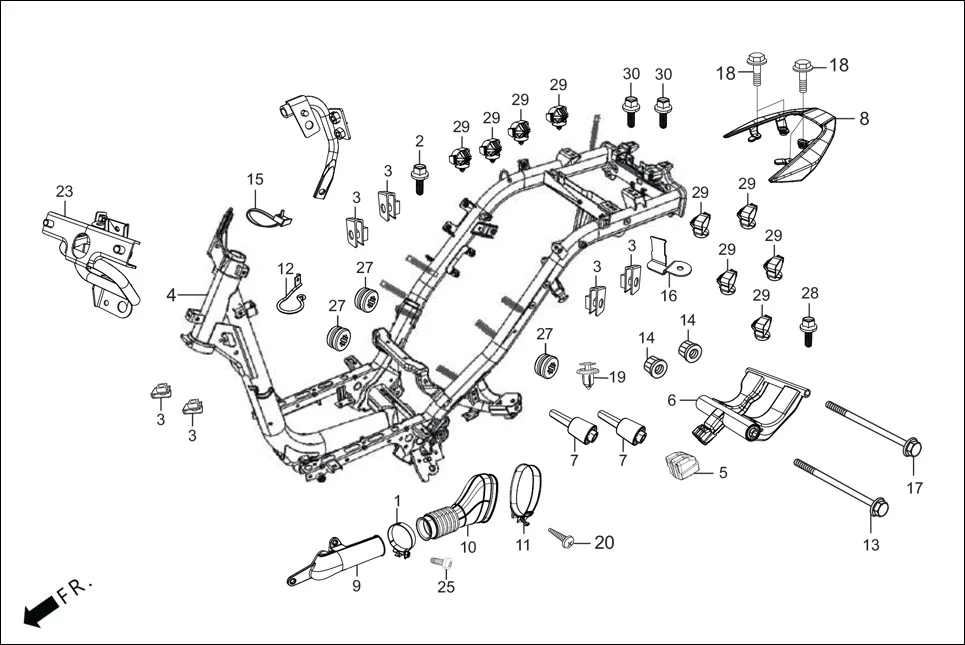

F-23-VX - FRAME BODY
Hero XOOM BS6 FI(Jan,2023) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16217-AAT-000 | BAND INSULATOR | 1 | |
| 2 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 3 | 90311-MT3-000 | NUT, CLIP, 6 MM | 6 | |
| 4 | 50100-AAW-D00 | FRAME BODY COMP | 1 | |
| 5 | 50352-AAW-B00 | RUBBER, LINK STOPPER | 1 | |
| 6 | 50350-AAW-D00 | LINK ASSY ENGINE HANGER | 1 | |
| 7 | 50353-AAW-000 | BUSH RUBBER ,ENG HANGER | 2 | |
| 8 | 77300-AAW-D00R | REAR GRIP(POLESTAR BLUE) | 1 | |
| 8 | 77300-AAW-D00S | REAR GRIP(BLACK NH-1) | 1 | |
| 8 | 77300-AAW-D00U | REAR GRIP(PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 9 | 11345-AAW-D00 | DUCT L COVER FRONT | 1 | |
| 10 | 11346-AAW-D00 | DUCT L COVER REAR | 1 | |
| 11 | 11347-AAW-300 | BAND L COVER DUCT | 1 | |
| 12 | 50197-AAW-D00 | WIRE RETAINER ASSY | 1 | |
| 13 | 90106-GCC-000 | BOLT, FLANGE 10X238 | 1 | |
| 14 | 90304-KCS-920 | NUT`U 10 MM | 2 | |
| 15 | 90672-KPL-901 | BODY, CLIP | 1 | |
| 16 | 17518-AAW-D00 | STAY ROV | 1 | |
| 17 | 90105-KJ9-000 | BOLT, FLANGE 10X210 | 1 | |
| 18 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 4 | |
| 19 | 90683-AAW-300 | CLIP TRIM. | 1 | |
| 20 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 23 | 50330-AAW-D00 | FRONT STRUCTURE SUB ASSY | 1 | |
| 25 | 93500-05025-0G | SCREW PAN 5X25 | 1 | |
| 26 | 96001-06016-07 | BOLT, FLANGE, SH. 6 X 16 | 2 | |
| 27 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 3 | |
| 28 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 6 | |
| 29 | 90685-AAW-D00 | CLIP CABLE | 11 | |
