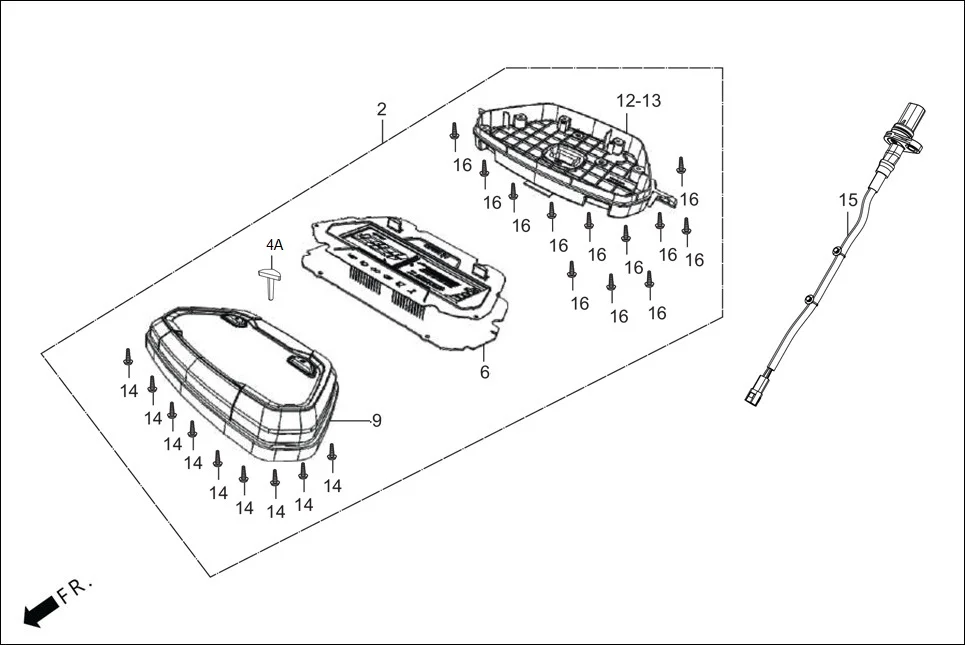

F-2-VX-METER
HeroXOOM BS6 FI(Jan,2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 37200-AAW-D01 | SPEEDOMETER ASSY | 1 | |
| 4 | 37203-AAW-D02 | KEY TOP | 1 | |
| 9 | 37211-AAW-D01 | CASE UPPER ASSY | 1 | |
| 9 | 37211-AAW-D02 | CASE UPPER ASSY | 1 | |
| 12 | 37212-AAW-D02 | CASE UNDER ASSY | 1 | |
| 13 | 37212-AAW-D01 | CASE UNDER ASSY | 1 | |
| 14 | 93903-22480 | SCREW TAPPING 3 X 16 | 9 | |
| 15 | 37700-AAW-D01 | SENSOR ASSY SPEED | 1 | |
| 16 | 37203-KWA-831 | SCREW TAPPING 3X14 | 12 |
