HERO OEM Part

16701-AAL-901

FUEL PUMP FILTER

Qty Required: 1 Ref #4 in Assembly

Part of Assembly

F-13
FUEL TANK
26 parts in this assembly

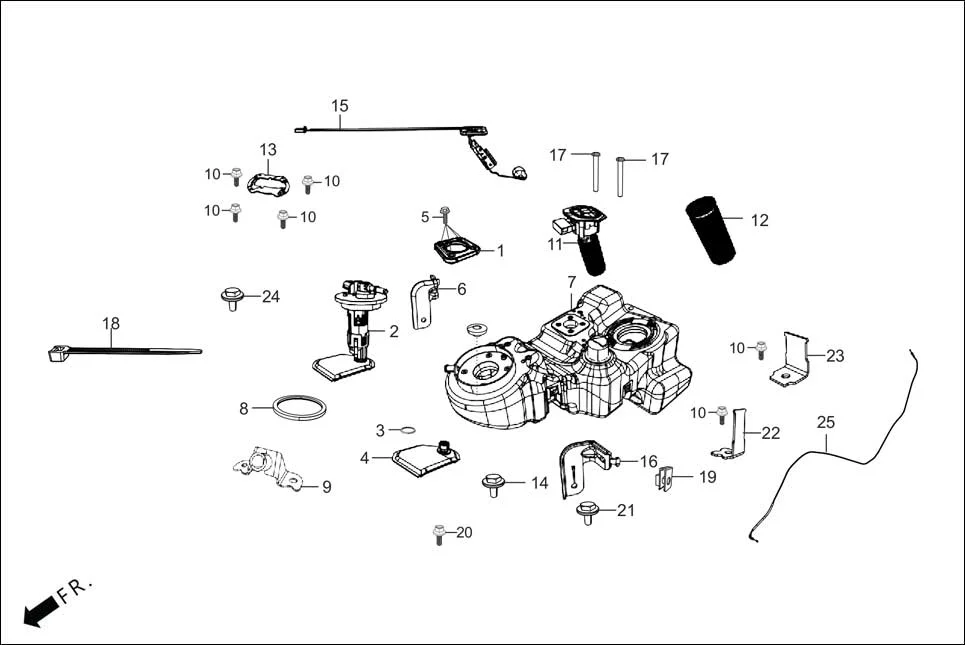

Assembly Diagram

F-13 FUEL TANK diagram showing 16701-AAL-901
Ref #4

Supported Vehicles22

HHERO XOOM 125 OBD2(Apr., 2025)
HERO XOOM 125 OBD2(Apr., 2025)
Current
HHERO DESTINI 125 BS6 OBD2 PHB CBS (Sept.,2025)
HERO DESTINI 125 BS6 OBD2 PHB CBS (Sept.,2025)
HHERO DESTINI 125 BS6 OBD2(Apr., 2025)
HERO DESTINI 125 BS6 OBD2(Apr., 2025)
HHERO DESTINI 125(Dec.,2024)
HERO DESTINI 125(Dec.,2024)
HHERO DESTINI BS6(March,2023)
HERO DESTINI BS6(March,2023)
HHERO DESTINI PRIME OBD PHA B(May, 2025)
HERO DESTINI PRIME OBD PHA B(May, 2025)
HHERO Destini 125 (Mar,2022)
HERO Destini 125 (Mar,2022)
HHERO Destini 125 BSVI (Feb, 2020)
HERO Destini 125 BSVI (Feb, 2020)

Related Parts

37801-ABR-001
PACKING BASE
16700-AAL-901
UNIT ASSY FUEL PUMP
16702-AAL-901
FUEL PUMP O-RING
90002-AAL-900
BOLT FLANGE 5X14
17503-ABV-000
STAY REAR FUEL TANK LH
17500-ABV-000
TANK COMP FUEL
View all 26 parts in this assembly
