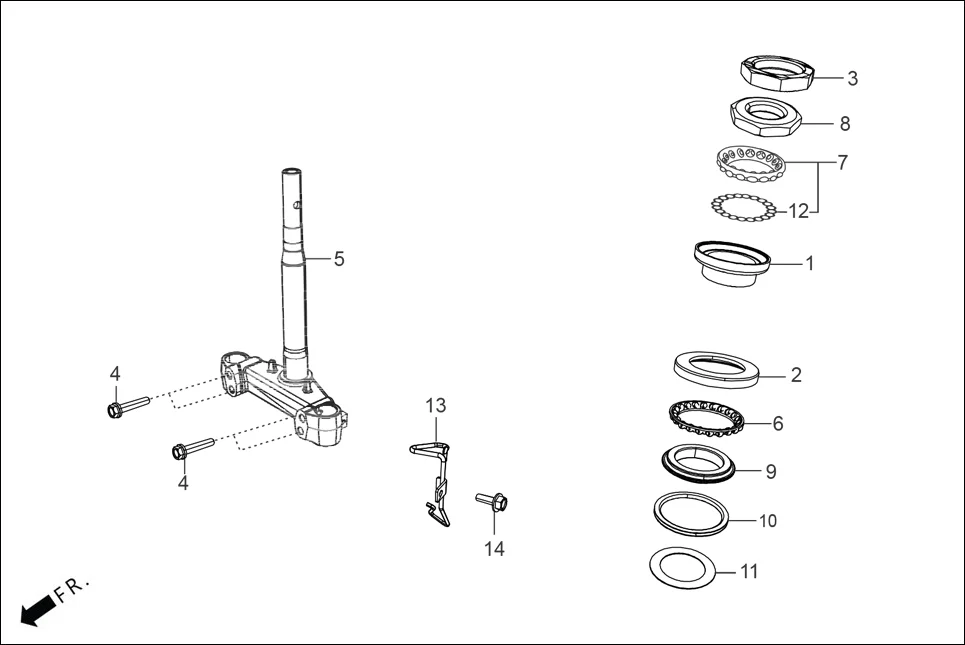

F-9-DRUM-STRG. STEM
HeroXOOM 125 OBD2(Apr., 2025) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50301-KEM-900 | RACE, UP STRG., BALL | 1 | |
| 2 | 50302-AAW-D00 | RACE STRG BOTTOM BALL | 1 | |
| 3 | 50306-KPL-900 | NUT, STRG. STEM, LOCK | 1 | |
| 4 | SFBLFH002G | BOLT FLANGE HEX M10X1.25X54X10.9. | 4 | |
| 5 | 53200-ABV-000 | STEM COMP STRG | 1 | |
| 6 | 53210-KTP-900 | BALL, ASSY, STRG. | 1 | |
| 7 | 53210-AAW-D00 | BALL ASSY STRG. | 1 | |
| 8 | 53211-KEM-900 | RACE, STRG. TOP CONE | 1 | |
| 9 | 53212-AAW-D00 | RACE STEERING BOTTOM CONE | 1 | |
| 10 | 53214-AAW-D00 | DUST SEAL STEERING HEAD | 1 | |
| 11 | 53215-AAW-D00 | WASHER STRG HEAD DUST SEAL | 1 | |
| 12 | 96211-05000 | BALL, STEEL #5 | 22 | |
| 13 | 51501-ABV-000 | BRKT CABLE GUIDE | 1 | |
| 14 | 95701-05016-00 | BOLT FLANGE 5X16 | 1 |
