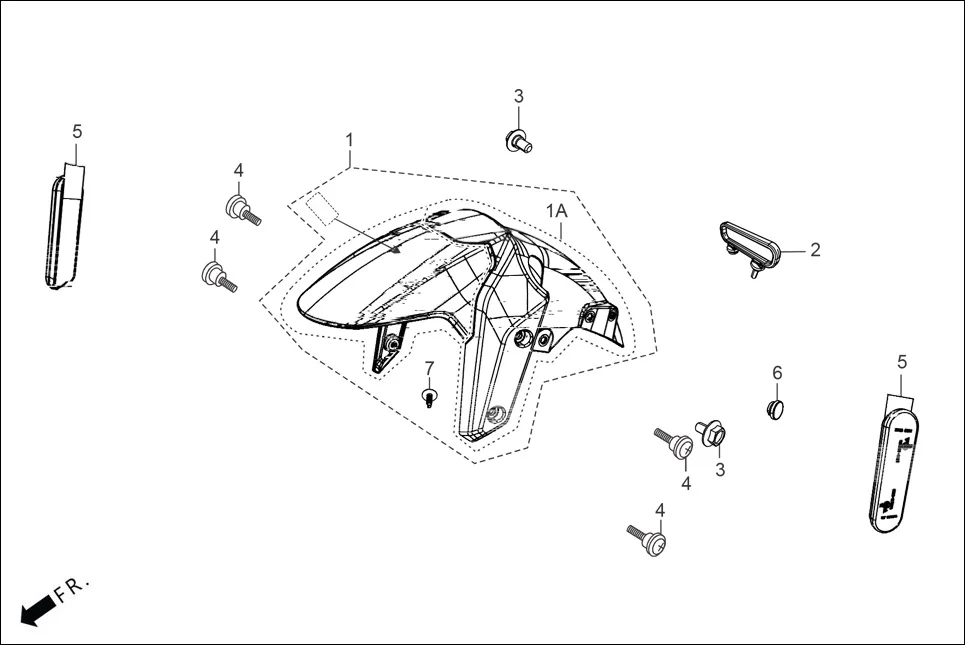

F-5-DRUM-FRONT FENDER
HeroXOOM 125 OBD2(Apr., 2025) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61000-ABV-000B | SET FRONT FENDER (MAT AXIS GRAY METALLIC) | 1 | |
| 1 | 61000-ABV-000D | SET FRONT FENDER (MATT NEXUS BLUE) | 1 | |
| 1 | 61000-ABV-000E | SET FRONT FENDER (VIBRANT BLUE METALLIC) | 1 | |
| 1 | 61100-ABV-000 | FRONT FENDER | 1 | |
| 2 | 45451-AAW-000 | GUIDE FR.FENDER CABLE | 1 | |
| 3 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 4 | |
| 5 | 33760-ACP-001 | REFLEX REFLECTOR FRONT | 2 | |
| 6 | 61324-ABH-500 | PLUG FR. FENDER | 2 | |
| 7 | 93903-34210 | SCREW TAPPING 4X10 | 7 |
