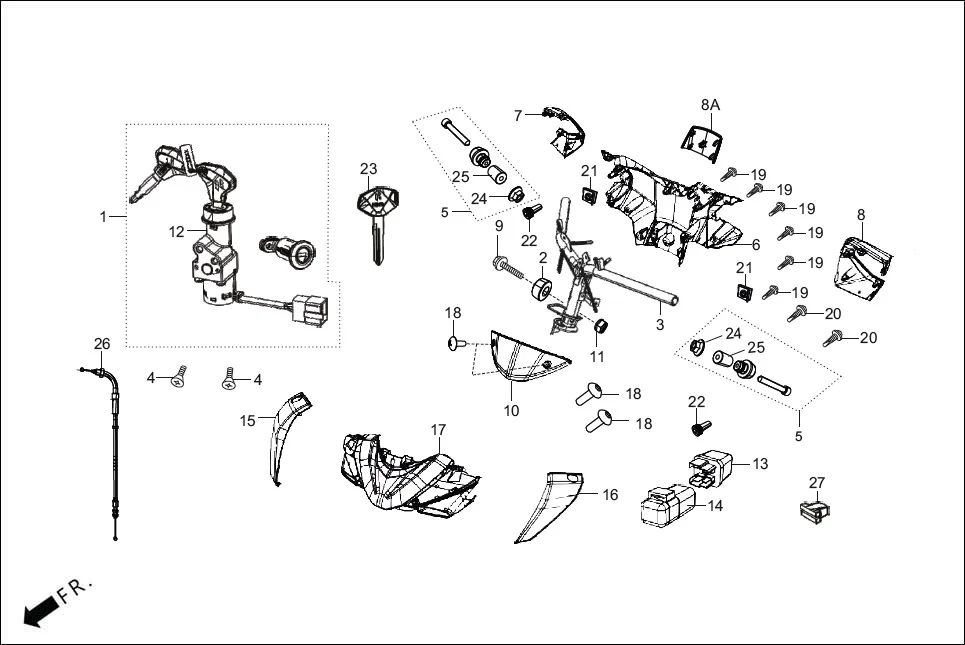

F-4-DISC - STEERING HANDLE/HANDLE COVER
Hero XOOM 125 OBD2(Apr., 2025) · 47 parts
Parts in This Assembly (47)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-ABV-001 | SW ASSY COMB AND LOCK | 1 | |
| 2 | 53124-ABS-000 | COLLAR, HANDLE SET | 1 | |
| 3 | 53100-ABV-000 | HANDLE COMP STRG | 1 | |
| 4 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 1 | |
| 5 | 53118-ABV-000 | HANDLE END WEIGHT SUB ASSEMBLY | 1 | |
| 6 | 53206-ABV-000 | COVER HANDLE RR | 1 | |
| 7 | 53218-ABV-000A | COVER HANDLE R RR (CANDY BLAZING RED) | 1 | |
| 7 | 53218-ABV-000B | COVER HANDLE R RR (MAT AXIS GRAY METALLIC) | 1 | |
| 7 | 53218-ABV-000C | COVER HANDLE R RR (MATT GIALLO LIME) | 1 | |
| 7 | 53218-ABV-000D | COVER HANDLE R RR (MATT NEXUS BLUE) | 1 | |
| 7 | 53218-ABV-000E | COVER HANDLE R RR (VIBRANT BLUE METALLIC) | 1 | |
| 7 | 53218-ABV-000F | COVER HANDLE R RR (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 8 | 53228-ABV-000A | COVER HANDLE L RR (CANDY BLAZING RED) | 1 | |
| 8 | 53228-ABV-000B | COVER HANDLE L RR (MAT AXIS GRAY METALLIC) | 1 | |
| 8 | 53228-ABV-000C | COVER HANDLE L RR (MATT GIALLO LIME) | 1 | |
| 8 | 53228-ABV-000D | COVER HANDLE L RR (MATT NEXUS BLUE) | 1 | |
| 8 | 53228-ABV-000E | COVER HANDLE L RR (VIBRANT BLUE METALLIC) | 1 | |
| 8 | 53228-ABV-000F | COVER HANDLE L RR (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 8 | 53238-ABV-000H | COVER HANDLE A RR (TORNADO GRAY METALLIC) | 1 | |
| 9 | 95801-10050-00 | BOLT FLANGE 10X50 | 1 | |
| 10 | 53204-ABV-000 | VISOR SPEEDOMETER | 1 | |
| 11 | 90304-KPL-900 | NUT HEX 5 MM | 2 | |
| 12 | 35100-ABV-001 | SW ASSY COMB AND LOCK | 1 | |
| 13 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
| 14 | 38506-AAW-301 | SUSP. START RELAY | 1 | |
| 15 | 53236-ABV-000A | COVER HANDLE TOP RH (CANDY BLAZING RED) | 1 | |
| 15 | 53236-ABV-000B | COVER HANDLE TOP RH (MAT AXIS GRAY METALLIC) | 1 | |
| 15 | 53236-ABV-000C | COVER HANDLE TOP RH (MATT GIALLO LIME) | 1 | |
| 15 | 53236-ABV-000D | COVER HANDLE TOP RH (MATT NEXUS BLUE) | 1 | |
| 15 | 53236-ABV-000E | COVER HANDLE TOP RH (VIBRANT BLUE METALLIC) | 1 | |
| 15 | 53236-ABV-000F | COVER HANDLE TOP RH (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 16 | 53237-ABV-000A | COVER HANDLE TOP LH (CANDY BLAZING RED) | 1 | |
| 16 | 53237-ABV-000B | COVER HANDLE TOP LH (MAT AXIS GRAY METALLIC) | 1 | |
| 16 | 53237-ABV-000C | COVER HANDLE TOP LH (MATT GIALLO LIME) | 1 | |
| 16 | 53237-ABV-000D | COVER HANDLE TOP LH (MATT NEXUS BLUE) | 1 | |
| 16 | 53237-ABV-000E | COVER HANDLE TOP LH (VIBRANT BLUE METALLIC) | 1 | |
| 16 | 53237-ABV-000F | COVER HANDLE TOP LH (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 17 | 53205-ABV-010G | COVER HANDLE FR (BLACK (NH-1)) | 1 | |
| 18 | 90101-ABV-000 | BOLT SPECIAL 5X12 | 2 | |
| 19 | 93903-35380 | SCREW TAPPING 5X16 | 6 | |
| 20 | 93903-34310 | SCREW TAPPING M4X12 | 4 | |
| 21 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 22 | 90116-KTP-900 | SCREW WASH 5X16 | 2 | |
| 23 | 35121-ABV-001 | KEY BLANK NO 1 | 1 | |
| 24 | 90071-AAL-D00 | NUT FLANGE 6 MM. | 1 | |
| 25 | 53120-AAL-D00 | RUBBER END WEIGHT. | 1 | |
| 26 | 50329-ABV-000 | DAMPER HANDLE COVER | 1 | |
