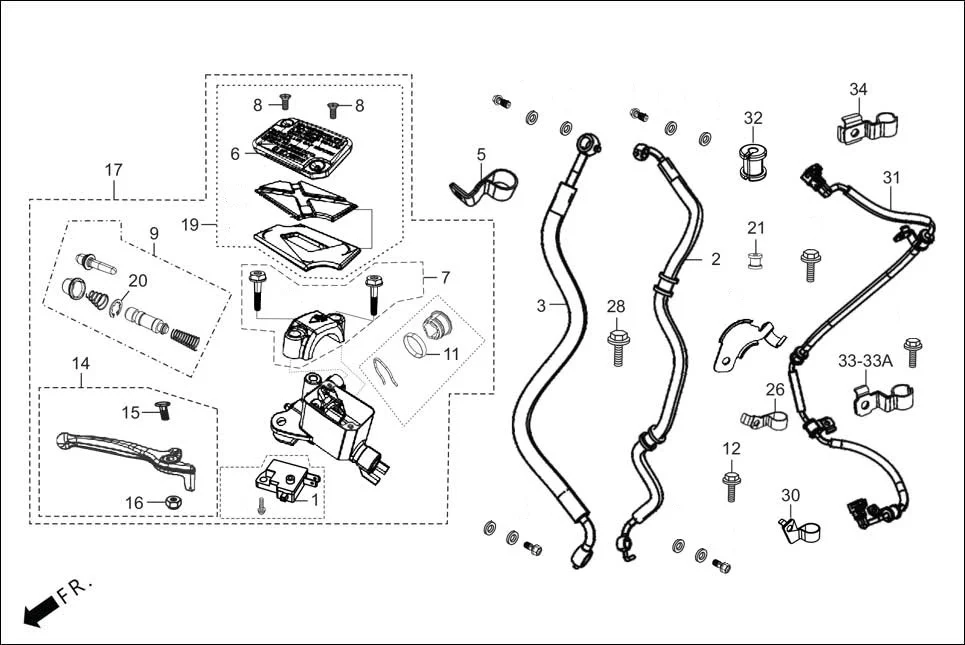

F-3A-DRUM - FRONT BRAKE (MASTER CLY.)
Hero XOOM 125 OBD2(Apr., 2025) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 12 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
| 21 | 46427-AAB-A00 | RUBBER HOSE CLAMP | 1 | |
| 30 | 45156-ABV-010 | CLAMPER BRAKE CABLE | 1 | |
| 31 | 17570-ABV-000 | HOSE COMP FUEL FEED | 1 | |
| 32 | 46428-AAL-900 | GROMMET, FUEL HOSE | 4 | |
| 33 | 45158-ABV-000 | CLAMP FUEL HOSE | 1 | |
| 34 | 45157-ABV-000 | CLAMP FUEL HOSE LCC MOUNTED | 1 | |
| 35 | 45155-AAL-900 | CLAMP, FUEL HOSE | 1 | |
