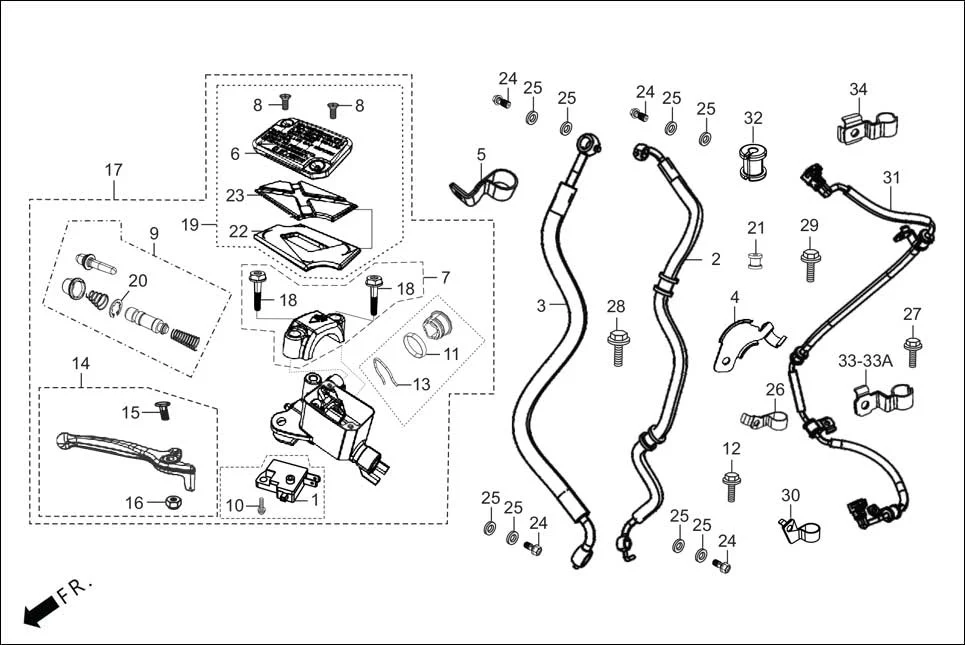

F-3A-DISC-FRONT BRAKE (MASTER CLY.)
HeroXOOM 125 OBD2(Apr., 2025) · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35340-KCC-841 | SW. ASSY. FR. STOP. | 1 | |
| 2 | 4513A-ABV-010 | BRAKE HOSE ASSY CCB TO CALIPER | 1 | |
| 3 | 45128-AAW-D10 | BRK.HOSE ASSY. FR. M/C TO CCB | 1 | |
| 4 | 45157-ABV-010 | CLAMPER A FR BRAKE | 1 | |
| 5 | 45155-ACP-000 | CLAMPER B | 1 | |
| 6 | 45513-KCC-841 | CAP, MASTER CYLINDER | 1 | |
| 7 | 45509-ABG-010 | CLAMP SET | 1 | |
| 8 | 45519-ABG-010 | FLAT SCREW | 2 | |
| 9 | 45530-AAW-D10 | CYLINDER SET MASTER | 1 | |
| 10 | 90112-KCC-841 | SCREW,PAN,4X8 | 1 | |
| 11 | 45516-KCC-841 | O RING | 1 | |
| 13 | 45522-KCC-841 | CLIP, GAUGE | 1 | |
| 14 | 45508-ABG-010 | LEVER SET | 1 | |
| 15 | 90114-ABG-010 | BOLT HANDLE LEVER | 1 | |
| 16 | 90303-KCC-841 | NUT | 1 | |
| 17 | 45510-AAW-D10 | MASTER CYL SUB ASSY SET. | 1 | |
| 18 | 90111-KCC-841 | BOLT,FLANGE 6 X 25 | 2 | |
| 19 | 45502-ABG-010 | CAP SET | 1 | |
| 20 | 90651-KCC-841 | CIRCLIP | 1 | |
| 22 | 45520-KCC-841 | DIAPHRAGM | 1 | |
| 23 | 45521-KCC-841 | PLATE, DIAPHRAGM | 1 | |
| 24 | 90145-MS9-610 | OIL BOLT, 10 X 22 | 4 | |
| 25 | 90545-ABZ-000 | WASHER OIL BOLT | 8 | |
| 26 | ABVAC3D000000G | CLAMPER REAR BRAKE CABLE | 1 | |
| 27 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 1 | |
| 28 | 90155-ABR-000 | BOLT, FLANGE 8X28 | 1 | |
| 29 | 95701-06014-08 | BOLT FLANGE 6X14 | 1 | |
| 31 | 17570-ABV-000 | HOSE COMP FUEL FEED | 1 | |
| 32 | 46428-AAL-900 | GROMMET, FUEL HOSE | 4 | |
| 33 | 45158-ABV-000 | CLAMP FUEL HOSE | 1 | |
| 34 | 45157-ABV-000 | CLAMP FUEL HOSE LCC MOUNTED | 1 | |
| 35 | 45155-AAL-900 | CLAMP, FUEL HOSE | 1 |
