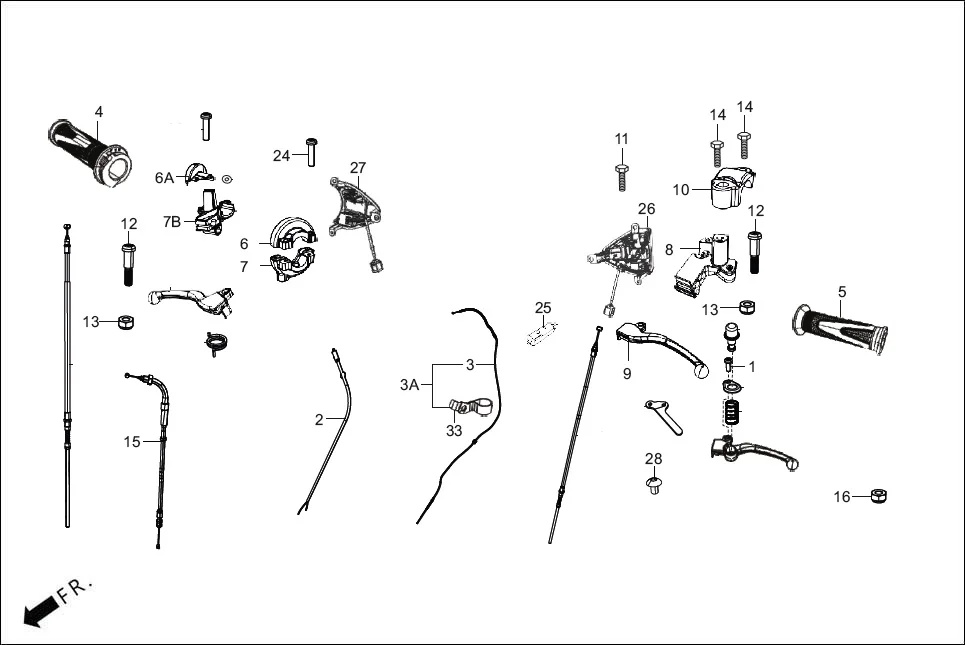

F-3-DISC-HANDLE LEVER/SWITCH/CABLE
HeroXOOM 125 OBD2(Apr., 2025) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 93500-05012-0A | SCREW PAN, 5 X 12 | 1 | |
| 2 | 35340-KTP-890 | SWITCH ASSY., FR. STOP | 1 | |
| 3 | 43450-ABV-010 | CABLE COMP RR BRAKE | 1 | |
| 3 | 4345A-ABV-010 | CABLE ASSEMBLY REAR BRAKE | 1 | |
| 4 | 53140-ABV-000 | GRIP COMP THROT . | 1 | |
| 5 | 53166-AAW-000 | GRIP L HANDLE | 1 | |
| 6 | 53167-AAW-D10 | HOUSING UPPER THROTTLE | 1 | |
| 7 | 53168-AAW-D10 | HOUSING UNDER THROTTLE | 1 | |
| 8 | 53172-AAW-D00 | BRACKET L HANDLE | 1 | |
| 9 | 53178-ABV-010 | LEVER L HANDLE | 1 | |
| 10 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 11 | 95801-10050-00 | BOLT FLANGE 10X50 | 1 | |
| 12 | 90115-05026-03 | SCREW HANDLE LEVER PIVOT | 1 | |
| 13 | 90304-KPL-900 | NUT HEX 5 MM | 1 | |
| 14 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
| 15 | ABVFF2A003000G | CABLE THROTTLE | 1 | |
| 16 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 24 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 25 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 26 | 35200-ABV-001 | SW ASSY. WINKER | 1 | |
| 27 | 35150-ABV-011 | SWITCH ASSY. START | 1 | |
| 28 | 90101-05008-03 | BOLT SPECIAL 5X8 | 1 | |
| 33 | ABVAC3D000000G | CLAMPER REAR BRAKE CABLE | 1 |
