F-26A-DRUM-MARK/STRIPE(OPTIONAL)

HeroXOOM 125 OBD2(Apr., 2025) · 4 parts

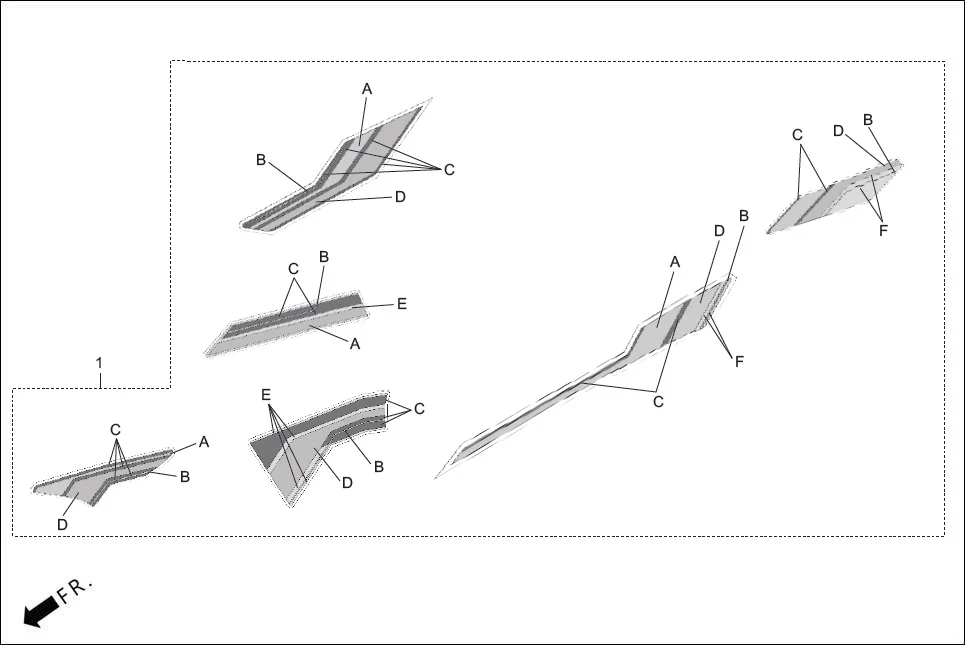

F-26A-DRUM MARK/STRIPE(OPTIONAL) assembly diagram for Hero XOOM 125 OBD2(Apr., 2025)

Parts in This Assembly (4)

Ref #Part NumberDescriptionQty
1ABVAS6A0000AZGSET STRIPE1
1ABVAS6A0000DYGSET STRIPE1
1ABVAS6A0000ENGSET STRIPE1
1ABVAS6A0000BDGSET STRIPE1
