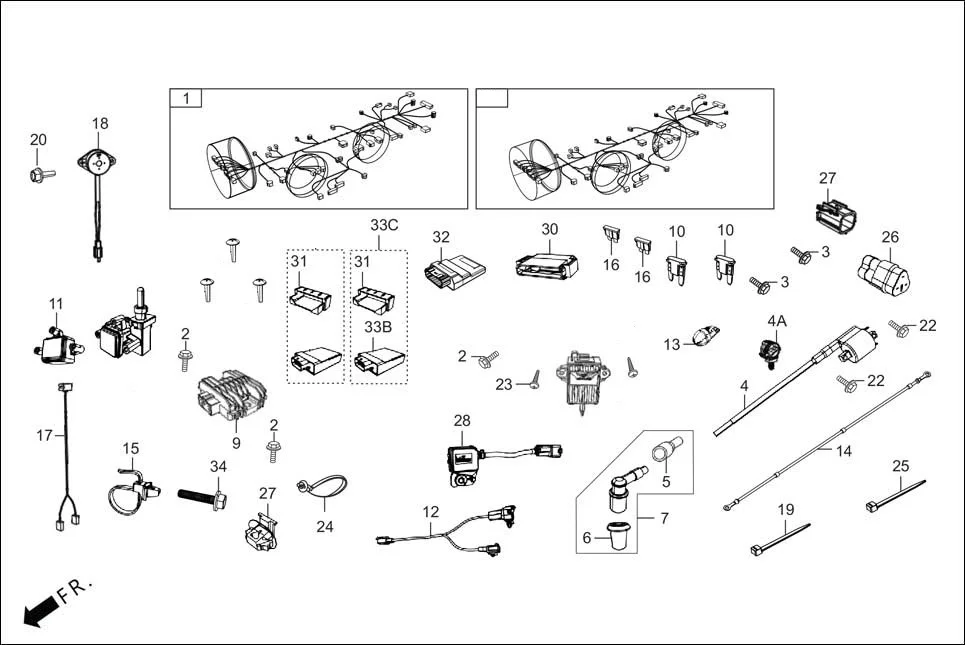

F-22-DRUM - WIRE HARNESS
Hero XOOM 125 OBD2(Apr., 2025) · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32100-ABV-500 | HARNESS WIRE | 1 | |
| 2 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 3 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 4 | 30510-ABR-001 | COIL COMP. IGNITION | 1 | |
| 4 | 30510-ACN-001 | COIL COMP. IGNITION | 1 | |
| 4 | ABVAA7D000000G | CLIP COIL IGNITION | 1 | |
| 5 | 30604-KTP-890 | CAP, CORD WATER PROOF. | 1 | |
| 6 | 30605-KTP-951 | SEAL, H/T TERMINAL | 1 | |
| 7 | 30700-AAW-001 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 7 | 30700-KTP-951 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 9 | 31600-AAC-B02 | REG RECT COMP | 1 | |
| 10 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 11 | 81255-AAW-010 | CAP BOOT LIGHT | 1 | |
| 12 | 32102-ABV-000 | SUB CORD BATTERY | 1 | |
| 13 | 34911-AAW-301 | LED BULB WHITE WEDGE BASE | 1 | |
| 14 | 32603-ABS-420 | CABLE ENG FRM EARTH | 1 | |
| 15 | 90672-KPL-901 | BODY, CLIP | 1 | |
| 16 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
| 17 | 32101-ABV-100 | SUB CORD FUEL LID SWITCH | 1 | |
| 18 | 33470-AAY-001 | ELECTRONIC BEEPER | 1 | |
| 19 | 91540-AAN-410 | CLIP, BAND HARN | 2 | |
| 20 | 95701-05016-00 | BOLT FLANGE 5X16 | 1 | |
| 22 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 24 | 91541-ABG-000 | CLIP BAND | 18 | |
| 25 | 91551-AAB-100 | BAND, CLAMP | 2 | |
| 26 | 35400-ABH-500 | RESISTOR COMP | 2 | |
| 27 | 91541-HMC-200 | CLIP FUSE BOX | 1 | |
| 28 | 35160-ABS-20099 | SENSOR ASSY BANK ANGLE | 1 | |
| 30 | 38771-ABW-L00 | CUSHION. PGM-FI/IGN UNIT | 1 | |
| 31 | 38871-ACP-001 | CUSHION BCM UNIT | 2 | |
| 32 | 38770-ABV-501 | UNIT COMP ECU | 1 | |
| 33 | 38870-ABV-001 | UNIT COMP BCM | 1 | |
| 33 | 38800-ABV-001 | UNIT ASSEMBLY BCM | 1 | |
| 34 | 95701-05025-00 | BOLT FLANGE 5X25 | 1 | |
