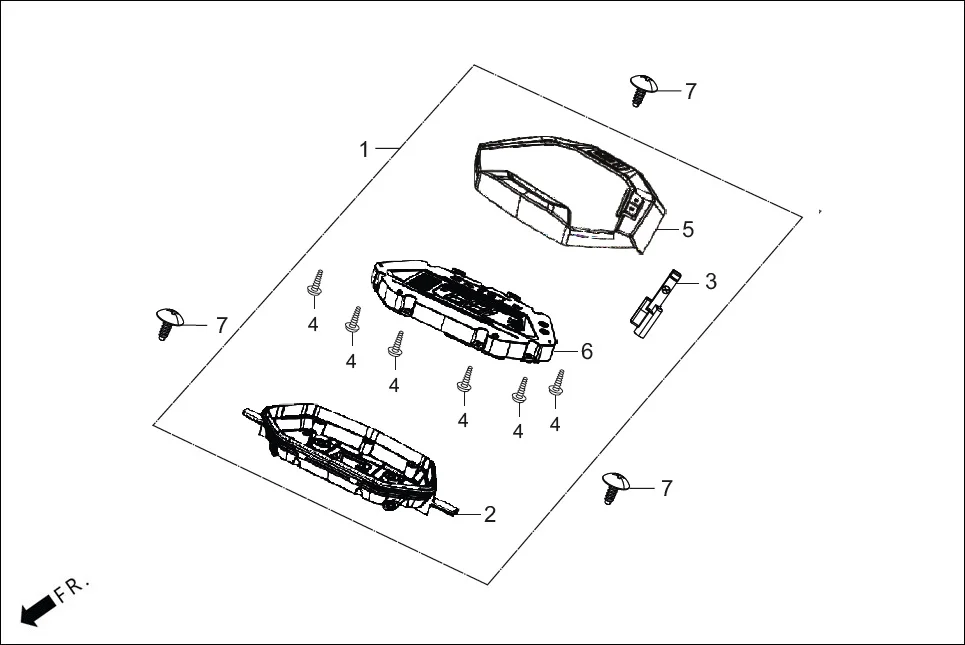

F-2 - METER
Hero XOOM 125 OBD2(Apr., 2025) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37200-ABV-011 | SPEEDOMETER ASSY | 1 | |
| 1 | 37200-ABV-001 | SPEEDOMETER ASSY | 1 | |
| 2 | 37212-ABV-001 | CASE UNDER ASSY | 1 | |
| 3 | 37202-ABV-001 | KEY TOP | 1 | |
| 4 | 90101-KY6-000 | SCREW, TAPPING, 3X14 | 7 | |
| 5 | 37211-ABV-011 | CASE UPPER ASSY | 1 | |
| 5 | 37211-ABV-001 | CASE UPPER ASSY | 1 | |
| 6 | 37210-ABV-001 | SPEEDOMETER COMP | 1 | |
| 6 | 37210-ABV-011 | SPEEDOMETER COMP | 1 | |
| 7 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 3 | |
