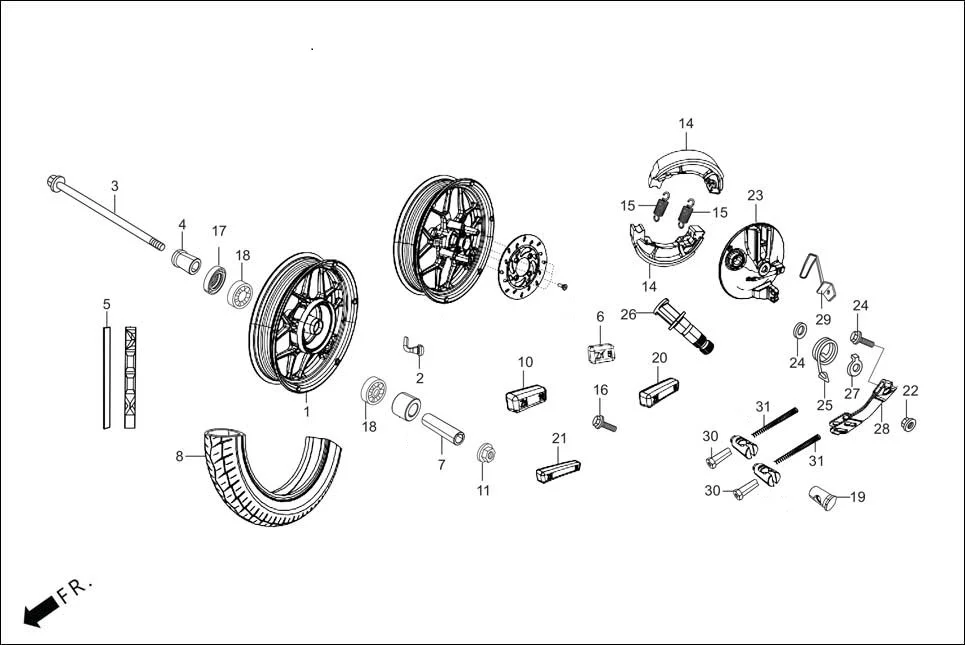

F-10-DRUM - FRONT WHEEL
Hero XOOM 125 OBD2(Apr., 2025) · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 44601-ABV-00099 | WHEEL COMP FRONT | 1 | |
| 2 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 3 | 44301-ABV-000 | AXLE FRONT WHEEL | 1 | |
| 4 | 44311-KPL-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 6 | 42703-AAB-A00 | WEIGHT BALANCE 5 | 2 | |
| 7 | 44620-ABV-000 | COLLAR FRONT AXLE DISTANCE | 1 | |
| 10 | 42704-AAB-A00 | WEIGHT BALANCE 10 | 2 | |
| 11 | 90306-KST-940 | NUT, FLANGE, 12 MM | 1 | |
| 11 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 11 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 14 | 45125-AAH-F0099 | SHOE COMP BRAKE | 4 | |
| 15 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 16 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 2 | |
| 17 | 90755-229-000 | OIL SEAL, 21 X 37 X 7 | 3 | |
| 18 | 96150-63010-10 | BEARING, BALL RADIAL, 6301 (UU) | 2 | |
| 19 | 43455-AAL-100 | JOINT BRAKE ARM | 2 | |
| 20 | 42707-AAB-A00 | WEIGHT BALANCE 15 | 2 | |
| 21 | 42705-AAB-A00 | WEIGHT BALANCE 20 | 2 | |
| 22 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 23 | 45100-ACP-010 | PANEL COMP FR BRAKE | 1 | |
| 24 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 25 | 45435-GB2-720 | SPRING, BRAKE ARM RETURN | 1 | |
| 26 | 45141-AAW-000 | CAM FRONT BRAKE | 1 | |
| 27 | 45145-AAW-000 | INDICATOR FRONT BRAKE | 1 | |
| 28 | 45410-AAW-D00 | ARM FR BRAKE | 1 | |
| 29 | 51502-AAW-000 | BRKT CABLE GUIDE BRAKE PANEL | 1 | |
| 30 | 45459-AAW-000 | NUT, BRAKE ADJUSTING | 2 | |
| 31 | 45456-AAW-D00 | SPRING BRK CABLE END | 2 | |
