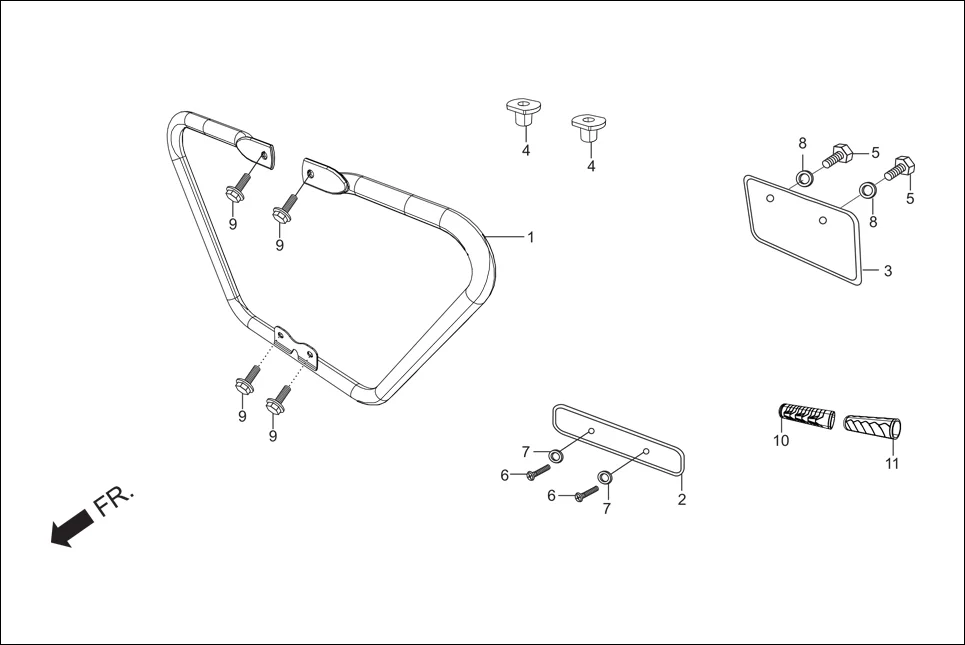

F-26 - GUARD ENGINE /NUMBER PLATE FR. /RR./GRIP COVER(OPTIONAL)
Hero Super Splendor (Nov, 2017) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50803-AAG-300 | GUARD ENGINE | 1 | |
| 4 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
| 5 | 92000-06012-0A | BOLT,HEX.,6X12 | 2 | |
| 6 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 7 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 8 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 9 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 4 | |
| 10 | 99620-AAN-701 | GRIP COVER - FLUID (SET OF 2) | 1 | |
| 11 | 99621-AAN-701 | GRIP COVER - WEDGE (SET OF 2) | 1 | |
