F-23A - RR. GRIP ASSY.

Hero Super Splendor (Nov, 2017) · 3 parts

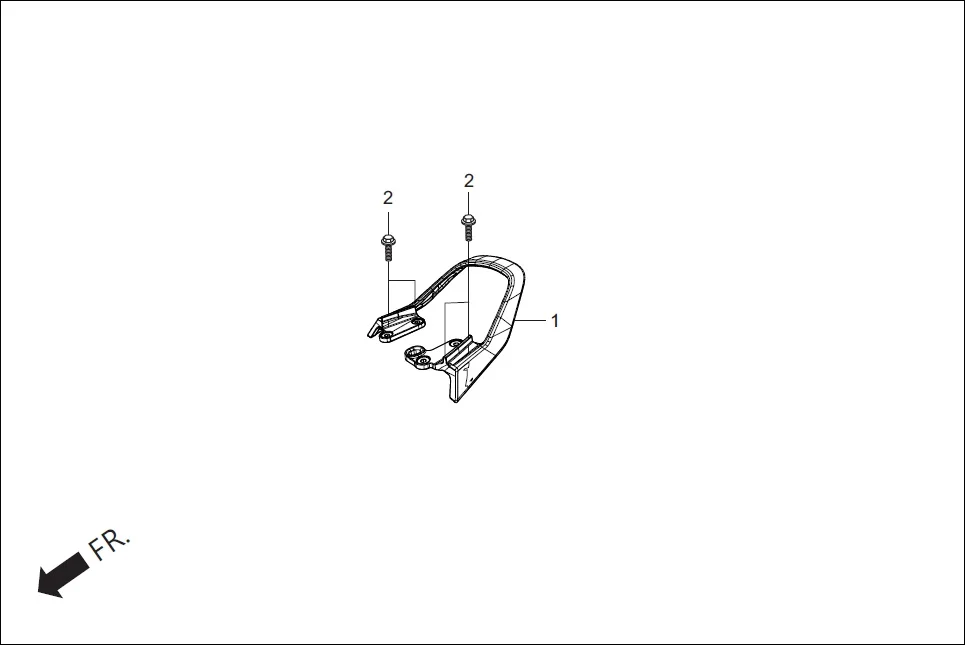

F-23A RR. GRIP ASSY. assembly diagram for Hero Super Splendor (Nov, 2017)

Parts in This Assembly (3)

Ref # Part Number Description Qty
1 50400-AAG-300R GRIP REAR (BLACK-1) 1
1 50400-AAG-300W GRIP REAR (SPORTS RED) 1
2 95701-08025-07 BOLT FLANGE 8X25 4
