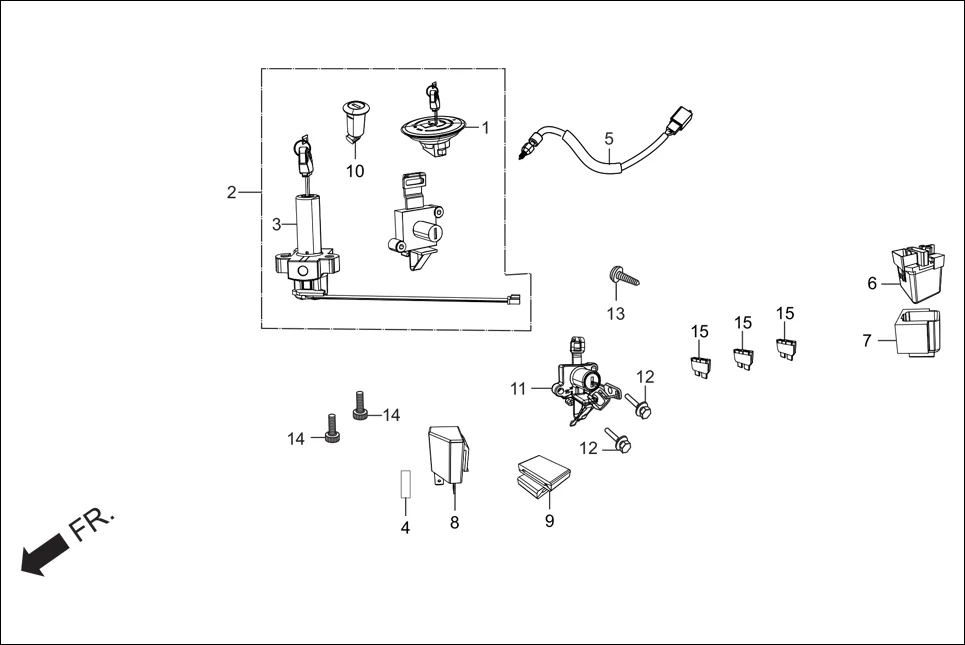

F-22B - SW & RELAY
Hero Super Splendor (Nov, 2017) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17620-AAT-000 | CAP COMP, FUEL FILLER | 1 | |
| 2 | 35010-AAG-301 | KEY SET | 1 | |
| 3 | 35100-AAG-001 | SW. ASSY. COMB. & LOCK | 1 | |
| 4 | 35140-AAD-00099 | SENSOR ASSY SIDE STAND | 1 | |
| 5 | 35350-KTR-A00 | SWITCH ASSY, REAR STOP | 1 | |
| 6 | 35850-AAM-H01 | SW ASSY. START MAG | 1 | |
| 6 | 35850-KR3-870 | SWITCH ASSY., START MAG. | 1 | |
| 7 | 35856-KBG-007 | RUBBER,SHOCK | 2 | |
| 8 | 38301-AAE-20099 | RELAY COMP., WINKER | 1 | |
| 9 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 10 | 77110-AAC-H00 | LOCK ASSY SEAT | 1 | |
| 11 | 83550-AAA-001 | LOCK, SIDE COVER | 1 | |
| 12 | 90107-GZ4-670 | BOLT, BREAK OFF | 2 | |
| 13 | 93891-05014-18 | SCREW, WASHER, 5 X 14 | 1 | |
| 14 | 96600-08025-00 | SOCKET, BOLT, 8 X 25 | 2 | |
| 15 | 98200-32000 | BLADE, FUSE, 20A | 3 | |
