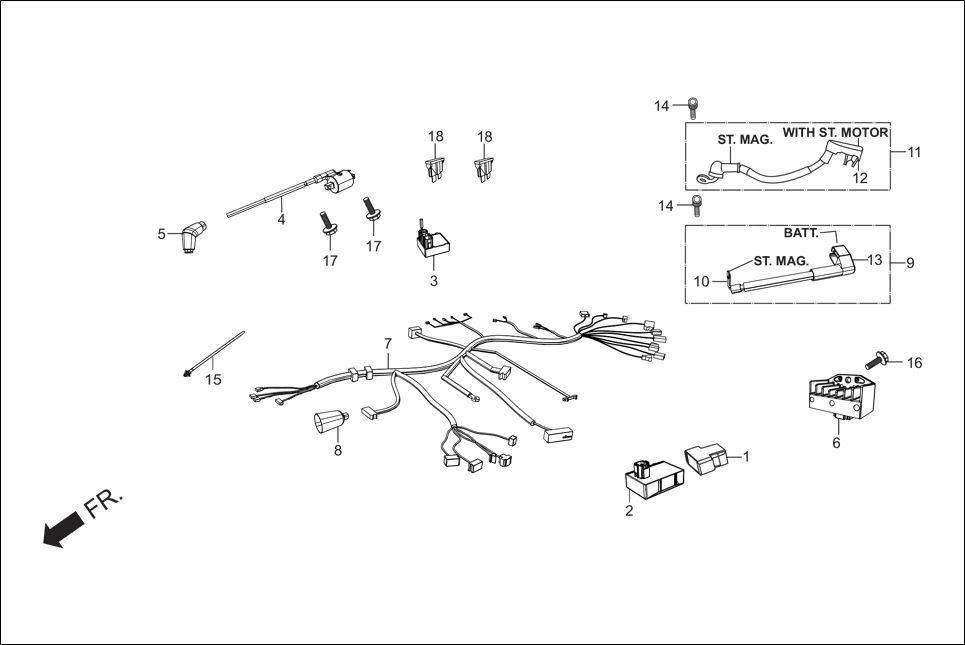

F-22 - WIRE HARNESS
Hero Super Splendor (Nov, 2017) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-KTE-910 | CUSHION, C.D.I. UNIT | 1 | |
| 1 | 30401-AAL-00099 | CUSHION CDI UNIT | 1 | |
| 2 | 30410-AAN-411 | UNIT COMP CDI | 1 | |
| 3 | 30460-AAM-000 | CONTROLLER UNIT COMP I3S | 1 | |
| 4 | 30500-AAN-H01 | COIL ASSY IGN | 1 | |
| 5 | 30700-ACK-00099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 6 | 31600-AAN-411 | REG RECT COMP | 1 | |
| 7 | 32100-AAG-300 | HARNESS WIRE | 1 | |
| 8 | 32108-KE8-000 | COVER ,CONNECTOR | 1 | |
| 9 | 32401-AAN-500 | CABLE ST MAG BATT | 1 | |
| 10 | 32406-MAK-000 | COVER, ST.MAG.TERMINAL | 1 | |
| 11 | 32410-AAN-410 | CABLE START MOTOR | 1 | |
| 12 | 32411-253-000 | COVER, STARTING MOTOR | 1 | |
| 13 | 32417-KTR-A10 | COVER, BAT. TERMINAL | 1 | |
| 14 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 15 | 90672-KPL-901 | BODY, CLIP | 1 | |
| 16 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 17 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 18 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
